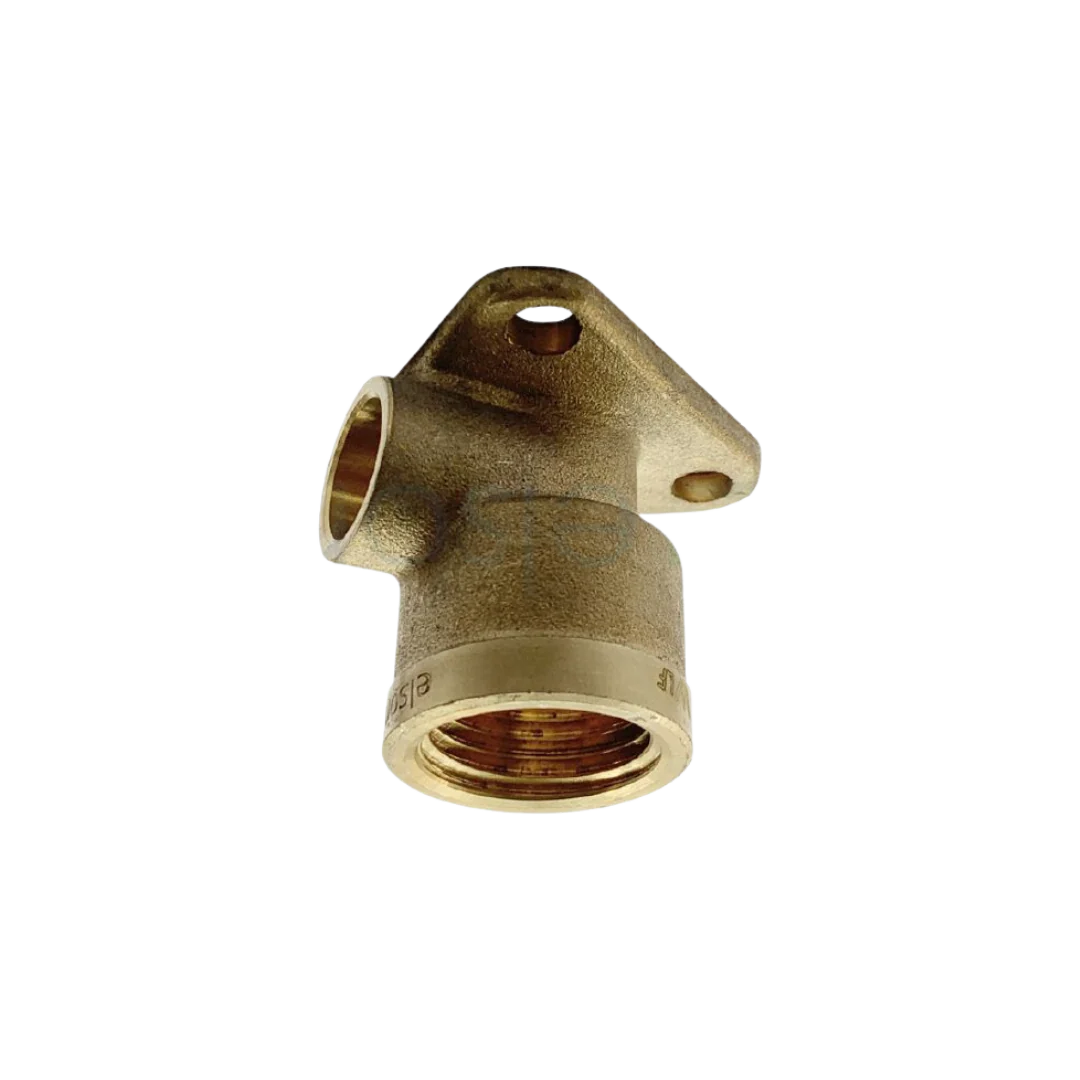

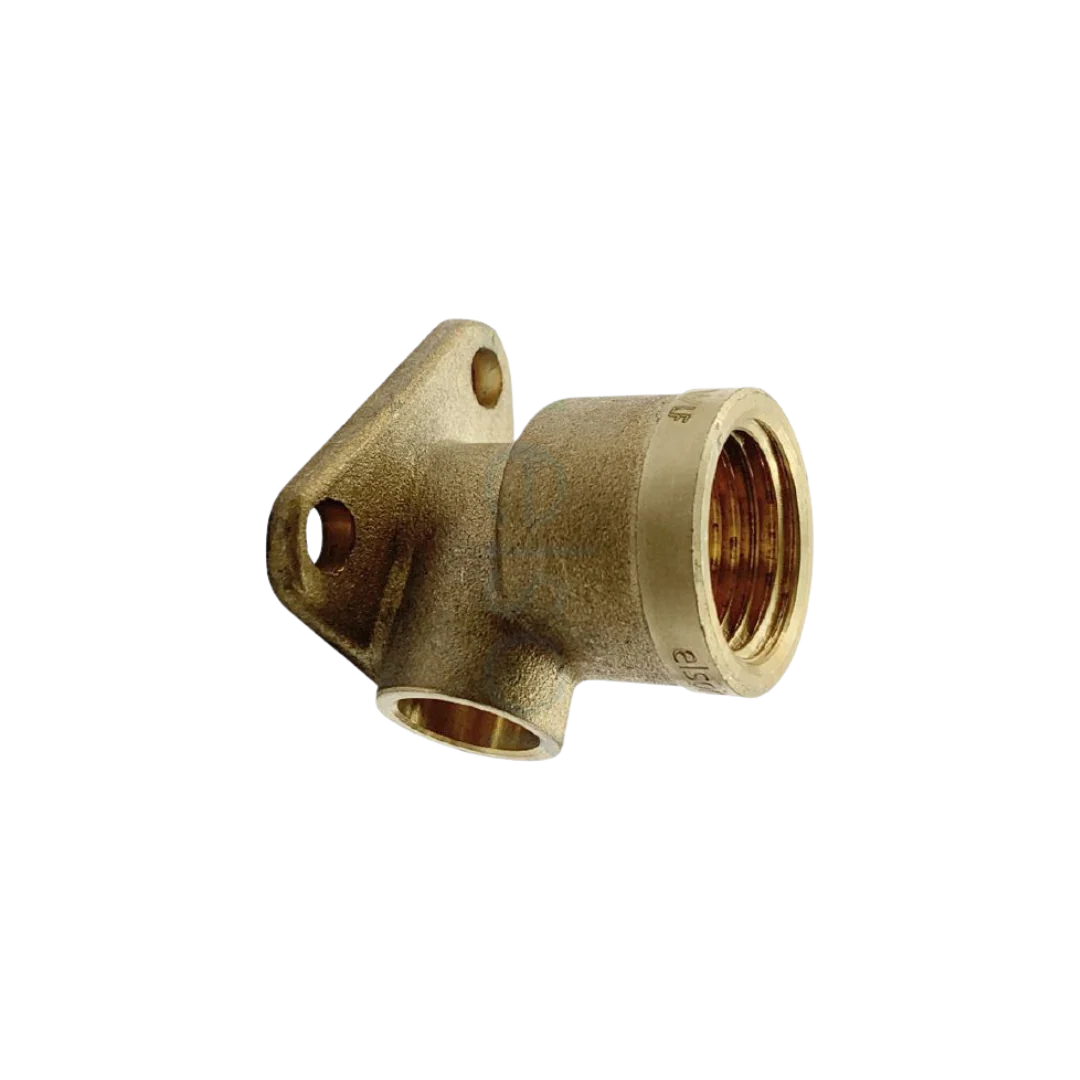

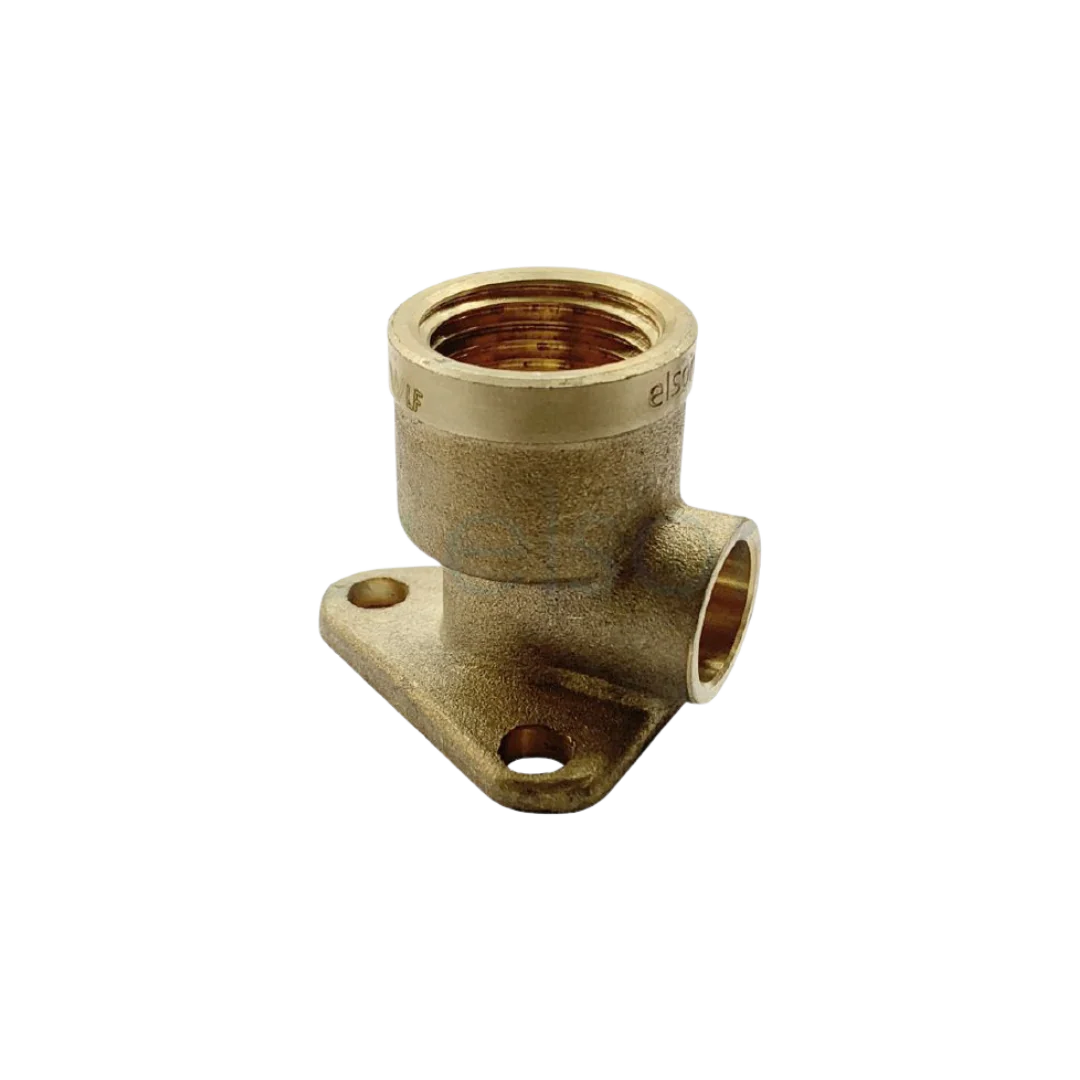

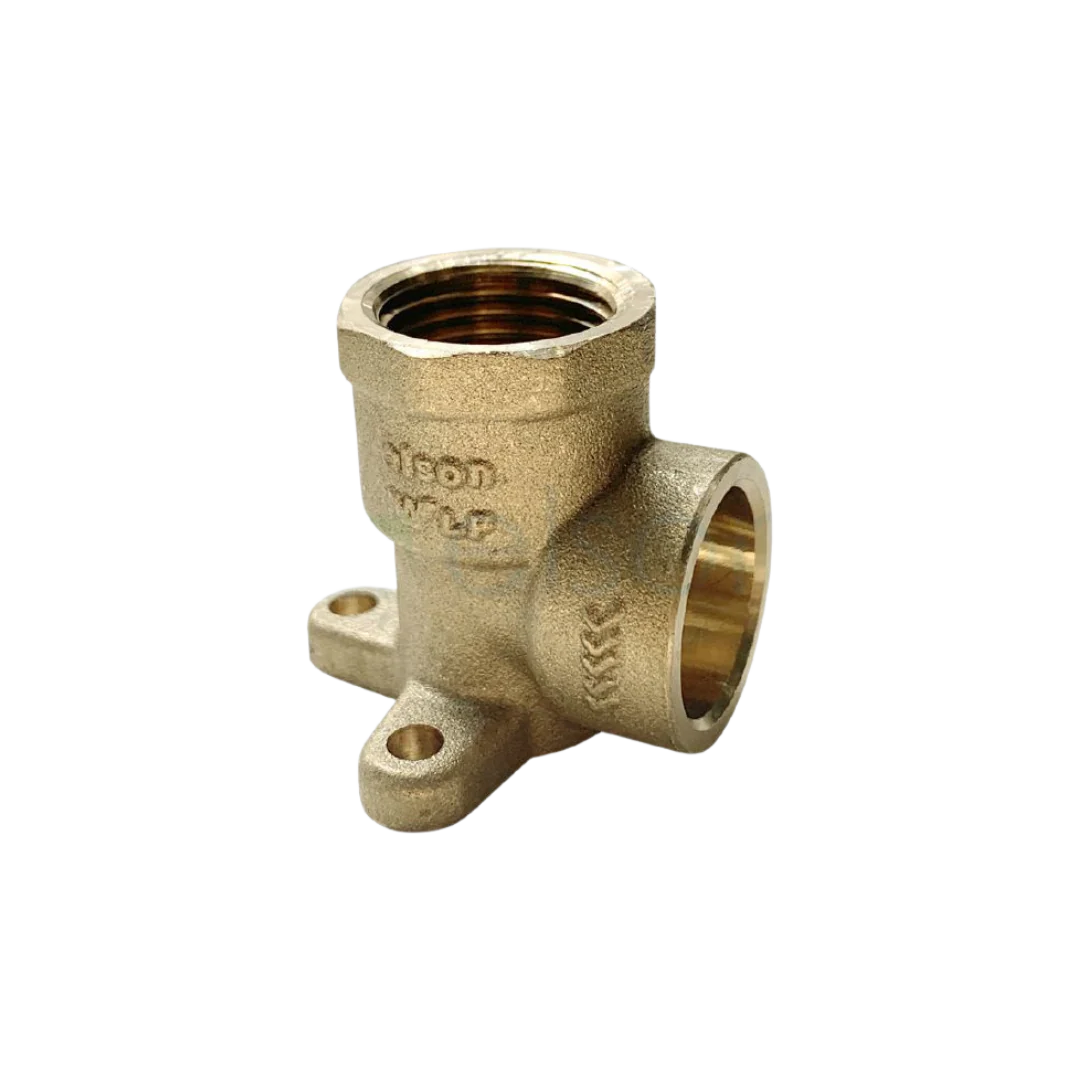

Brass Female Lugged Elbow

Brass Female Lugged Elbow (Capillary Fitting)

The Brass Female Lugged Elbow is a capillary brass fitting designed for wall-mounted pipework. It features a lugged wall plate for secure attachment and allows copper to be brazed on one arm while a male fitting, such as a hose bib, is screwed into the other. Ideal for plumbing applications requiring durable, safe, and leak-free connections.

Key Features:

• Type: Capillary elbow (15BP) for small-diameter fittings (15–25mm)
• Material: High-quality DZR brass and copper, compliant with Australian Standards AS3688 and AS1423
• Application: Wall-mounted elbow for connecting copper pipe to male fittings
• Design: Wall plate for secure mounting and male threaded arm for easy connection
• Durability: Copper is corrosion-resistant, vermin-proof, recyclable, and can withstand temperatures up to 200°C
• Sealing: Use Teflon tape and sealing paste (e.g. Mirror Paste) for reliable watertight joints
• Compliance: WaterMark approved and meets mechanical strength and chemical resistance standards
• Performance: Maximum working pressure 2000 kPa, max temperature 80°C

Why Choose Brass Female Lugged Elbows?

Capillary fittings offer strong, leak-free connections for professional plumbing. The combination of DZR brass and Australian Standard copper ensures these elbows are durable, safe for drinking water, and long-lasting in both residential and commercial applications.

Important: Installation into mains-connected pipework must be performed by a licensed plumber.

Available Sizes:

• FYL334 — 12mm CY x 12mm FI Lugged Elbow Brass
• FYL342 — 20mm CY x 12mm FI Lugged Elbow Brass
• FYL340 — 20mm CY x 20mm FI Lugged Elbow Brass
