Dam Buster R-303X Bg Adapter

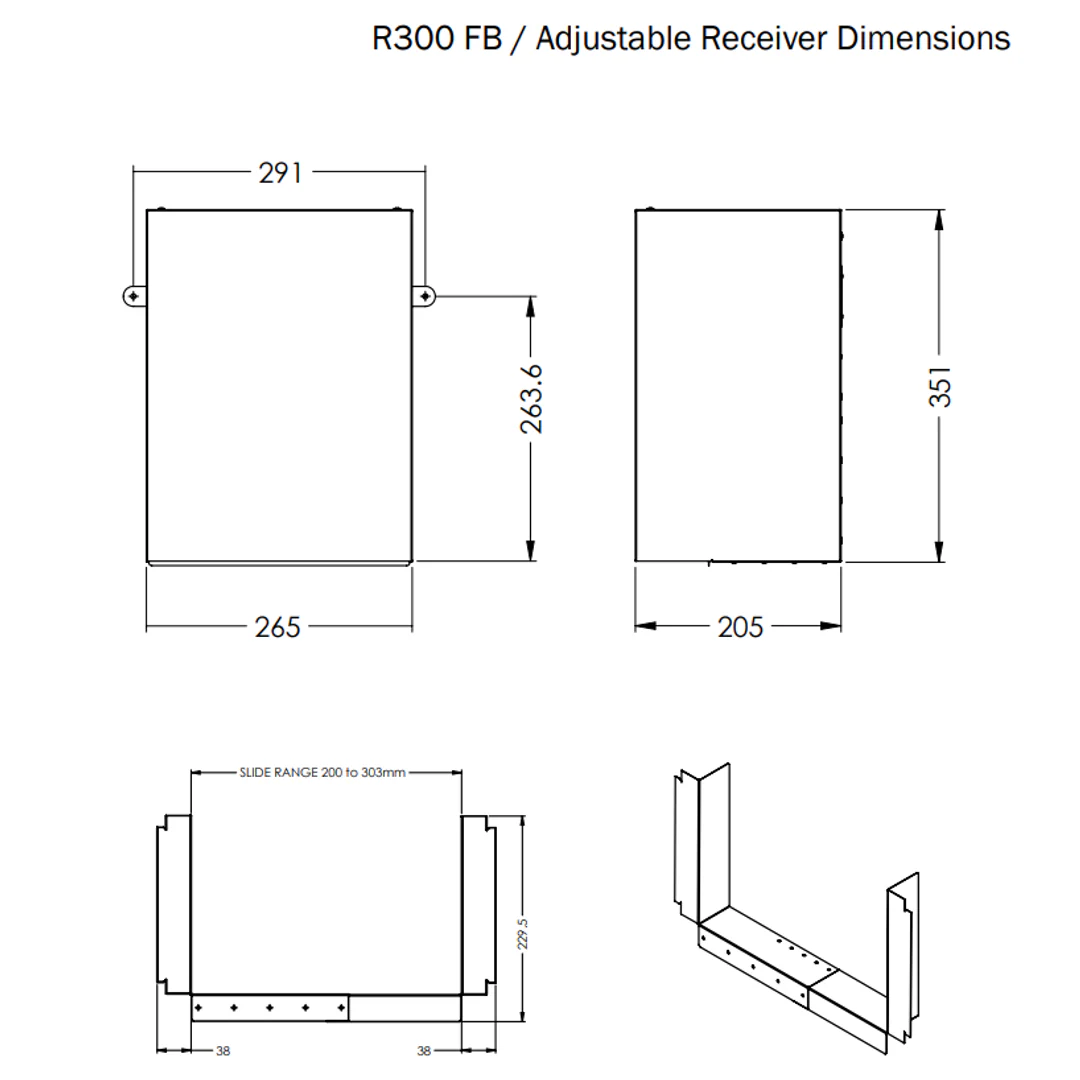

Dambuster R-300X-BG Box Gutter Adapter – Adjustable Flat-Back Rainhead Adapter

The Dambuster R-300X-BG Box Gutter Adapter is an adjustable adapter designed to provide a precise, secure fit between flat-back rainhead units and a wide range of box gutter sizes. Built for flexibility on site, this adapter slides to match your exact gutter width, helping ensure a neat and compliant installation.

Each flat-back rainhead unit is typically supplied with one adapter, but additional adapters are also available to purchase separately when extra units are required.

Key Features

• Fully Adjustable Fit: Slides to suit box gutter sizes from 200mm to 503mm.
• Precise Installation: Allows accurate sizing to match your exact gutter width.
• Flat-Back Compatible: Designed for use with Dambuster flat-back rainhead units.
• Available Separately: Included with flat-back units, and also sold separately if additional adapters are needed.
• Flexible On-Site Setup: Ideal when multiple adapters or replacements are required.

Colour Options Available:

Classic Finish: Surfmist, Monument, Night Sky, Shale Grey, Dover White, Woodland Grey, Evening Haze, Southerly, Dune, Paperbark, Classic Cream, Bluegum, Windspray, Gully, Jasper, Wallaby, Basalt, Ironstone, Deep Ocean, Cottage Green, Pale Eucalypt, Manor Red

Special Finish:

ULTRA finish: Made to Order (ETA 7–10 days)

Matt finish: Made to Order (ETA 7–10 days)

For assistance with colour selection or special orders, contact us directly.

For technical specifications, installation instructions, and size calculators, visit the Dambuster Technical Downloads page: Technical Downloads

Downloads

Specification Sheet
