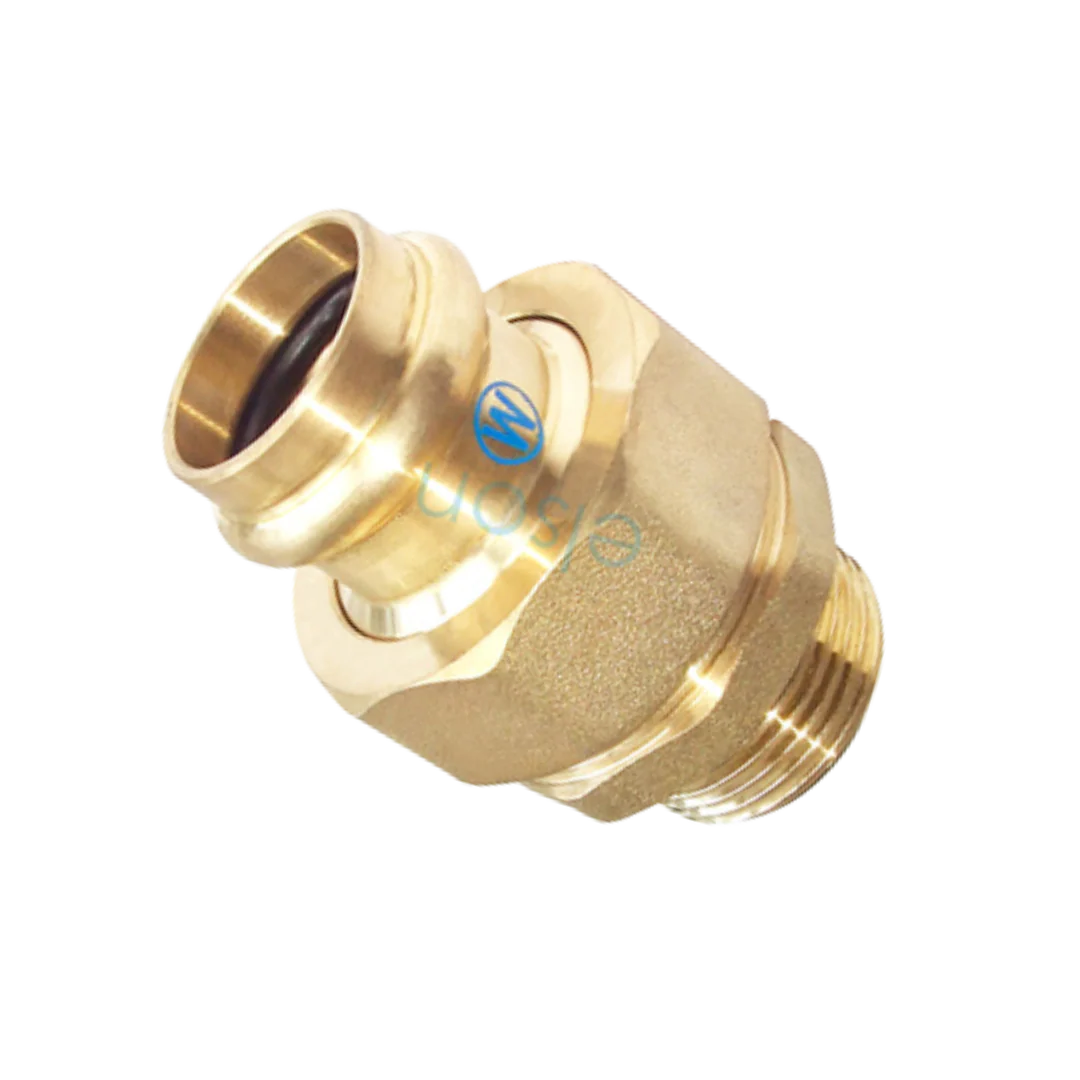

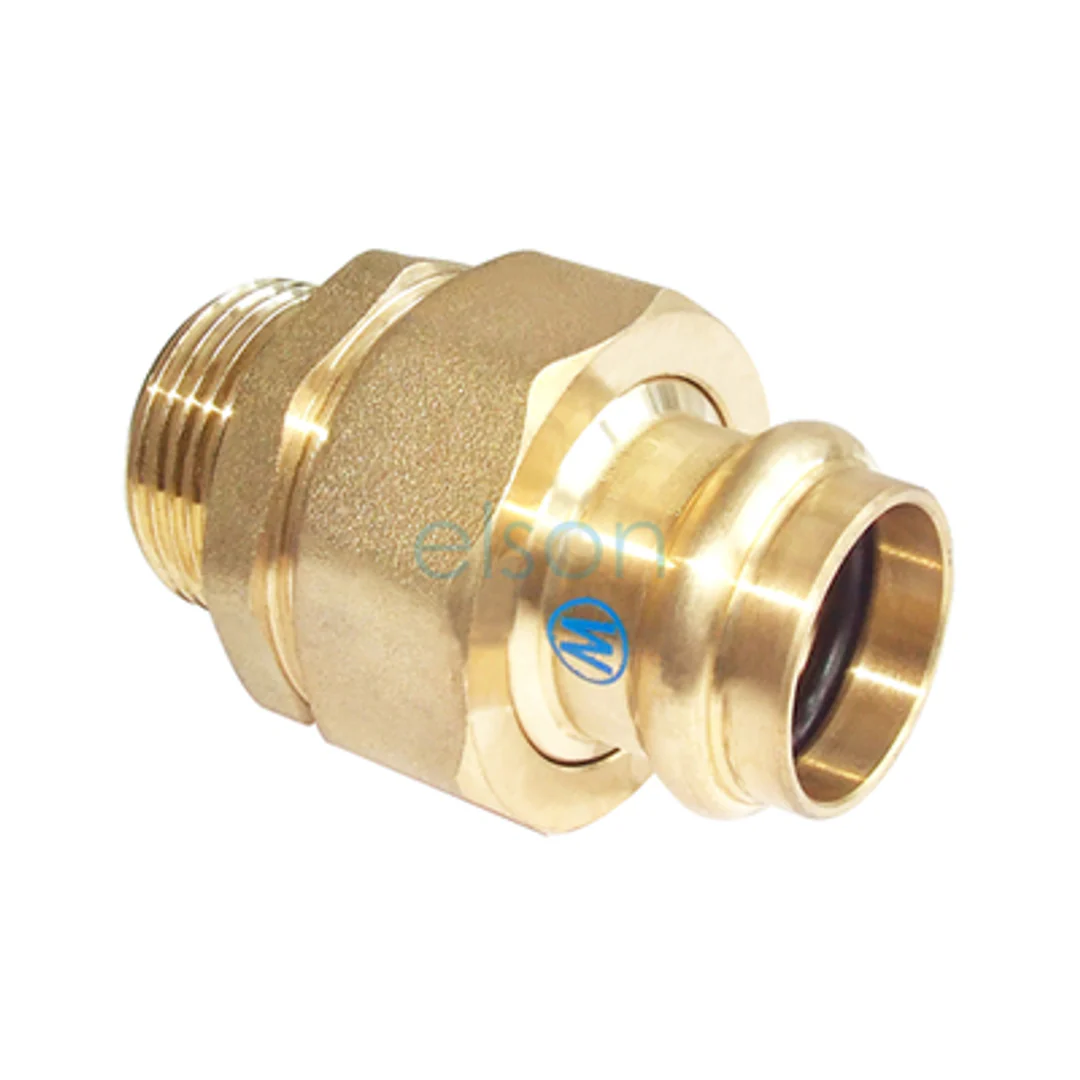

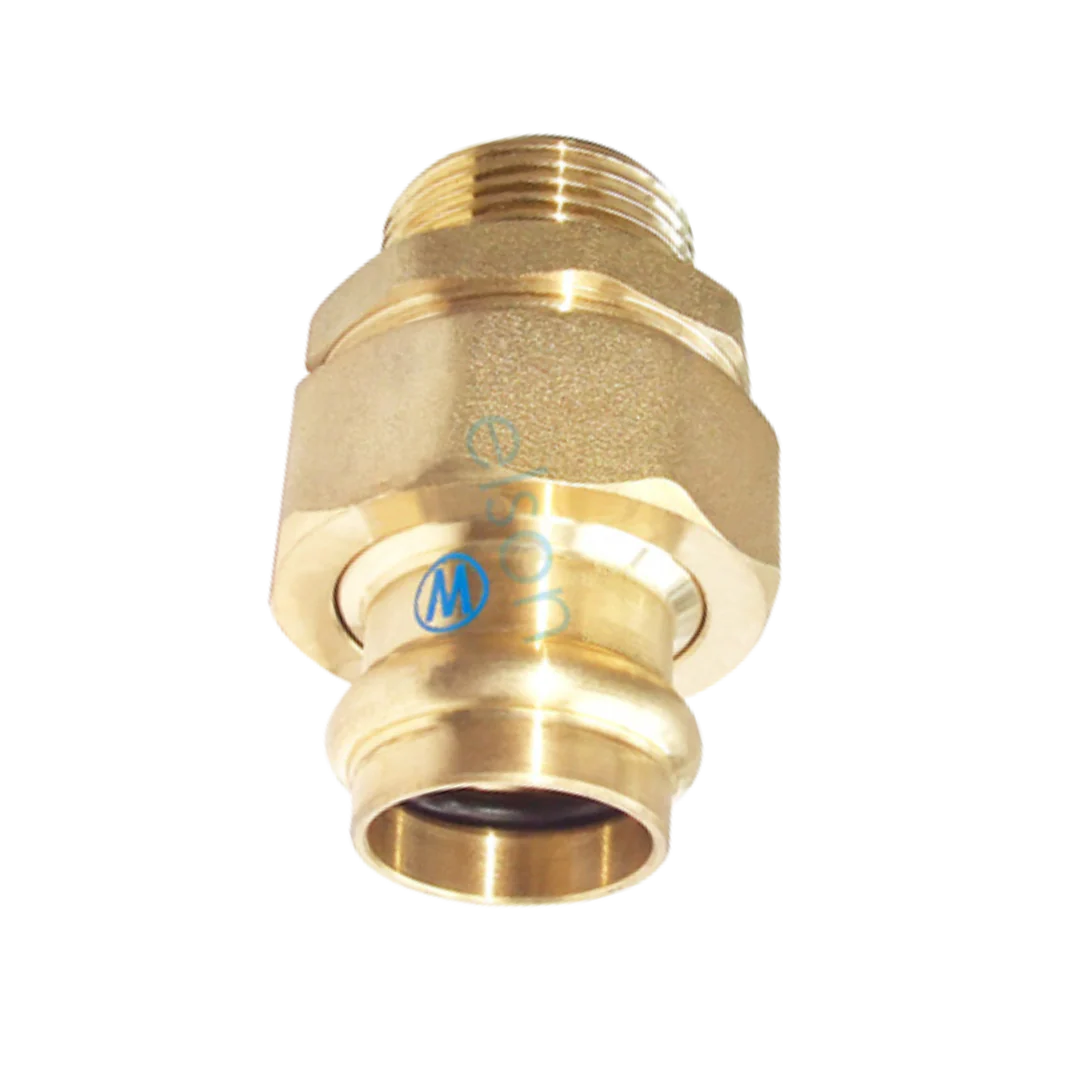

Copper Press Male Union Swivel - Water

Copper Press Male Union Swivel – Water

Elson Press Male Union Swivel fittings provide a secure and easy-to-install connection for water systems, allowing for rotation without disturbing the piping alignment. Designed for durability and leak-free performance, these fittings are ideal for residential, commercial, and industrial plumbing applications.

Key Features:

• Lead-Free DR Brass (<0.1% Pb)
• Leak-Before-Press O-ring technology for reliable sealing
• V-profile press design for a strong, permanent connection
• Allows swivel rotation for easy installation and alignment
• Flame-free press installation — no hot works required
• Suitable for potable water systems
• Compliant with Australian Standards (AS/NZS)
• Nationwide technical and after-sales support

Variants:

• FKP426 — ELSON PRESS WATER MALE UNION SWIVEL 12 X 12MI BSP EPW
• FKP428 — ELSON PRESS WATER MALE UNION SWIVEL 20 X 20MI BSP EPW

Specifications:

• Material: Lead-Free DR Brass
• Connection Type: Male BSP
• Press Type: V-profile press
• Max Working Pressure: 1600 kPa
• Max Working Temperature: -20°C to 100°C
• Standards: ISO9001 Certified Manufacturing
• Warranty: 25-Year Product Warranty
• Applications: Water systems in residential, commercial, and industrial plumbing
