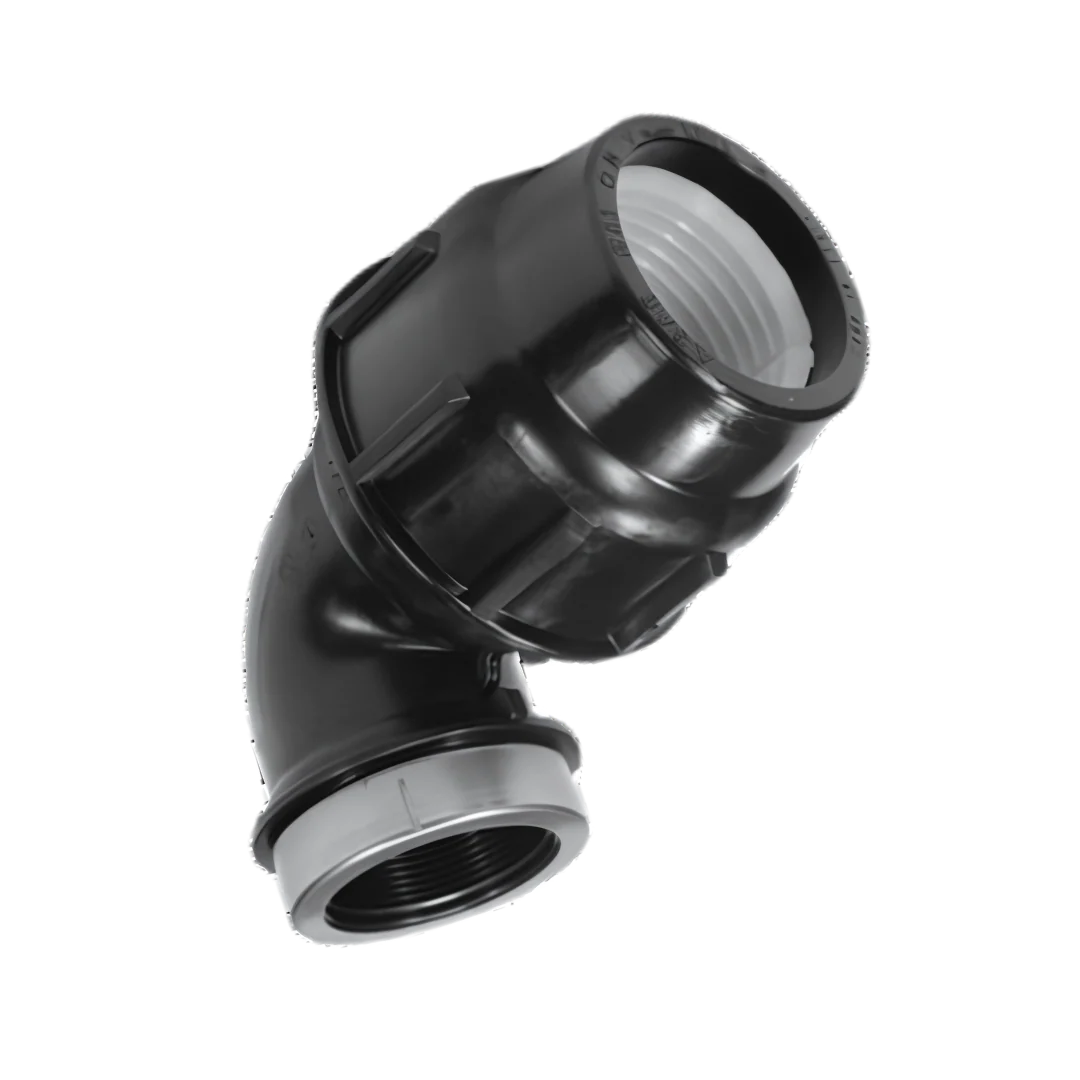

Poly Metric Reducing Female Elbow

Poly Metric Reducing Female Elbow

Black Polyethylene (PE) metric compression female threaded elbow. Designed to join poly pipe with male threaded fittings at a 90° angle while accommodating a reduction in pipe size.

Key Features:

• 90° reducing female elbow for poly pipe systems
• Compression fitting with O-ring seal for leak-free connection
• High chemical, UV, and corrosion resistance
• Suitable for potable water, irrigation, and rural applications
• Lightweight, easy to install, and durable
• Recommended for pipe sizes 25mm and above for optimal flow
• Specifications:
• Material: High-performance polyethylene (PE)
• Pipe Standard Compliance: AS/NZS4129 & ISO14236
• Water Contact Compliance: AS/NZS4020 for potable water
• Pressure Rating: PN16 (1600 kPa / 235 psi)
• Typical Sizes: 16mm to 110mm
• Installation Note: Licensed plumber required for mains-connected systems

Variants:

• PBM222 — Metric 7150 Female Elbow 20P x 12MM FI (FEL)
• PBM224 — Metric 7150 Female Elbow 25P x 12MM FI (FEL)
• PBM226 — Metric 7150 Female Elbow 25P x 20MM FI (FEL)
• PBM229 — Metric 7150 Female Elbow 32P x 25MM FI (FEL)
• PBM231 — Metric 7150 Female Elbow 40P x 32MM FI (FEL)
• PBM233 — Metric 7150 Female Elbow 40P x 50MM FI (FEL)
• PBM235 — Metric 7150 Female Elbow 50P x 40MM FI (FEL)
• PBM23655 — Metric 7150 Female Elbow 63P x 50MM FI (FEL)
