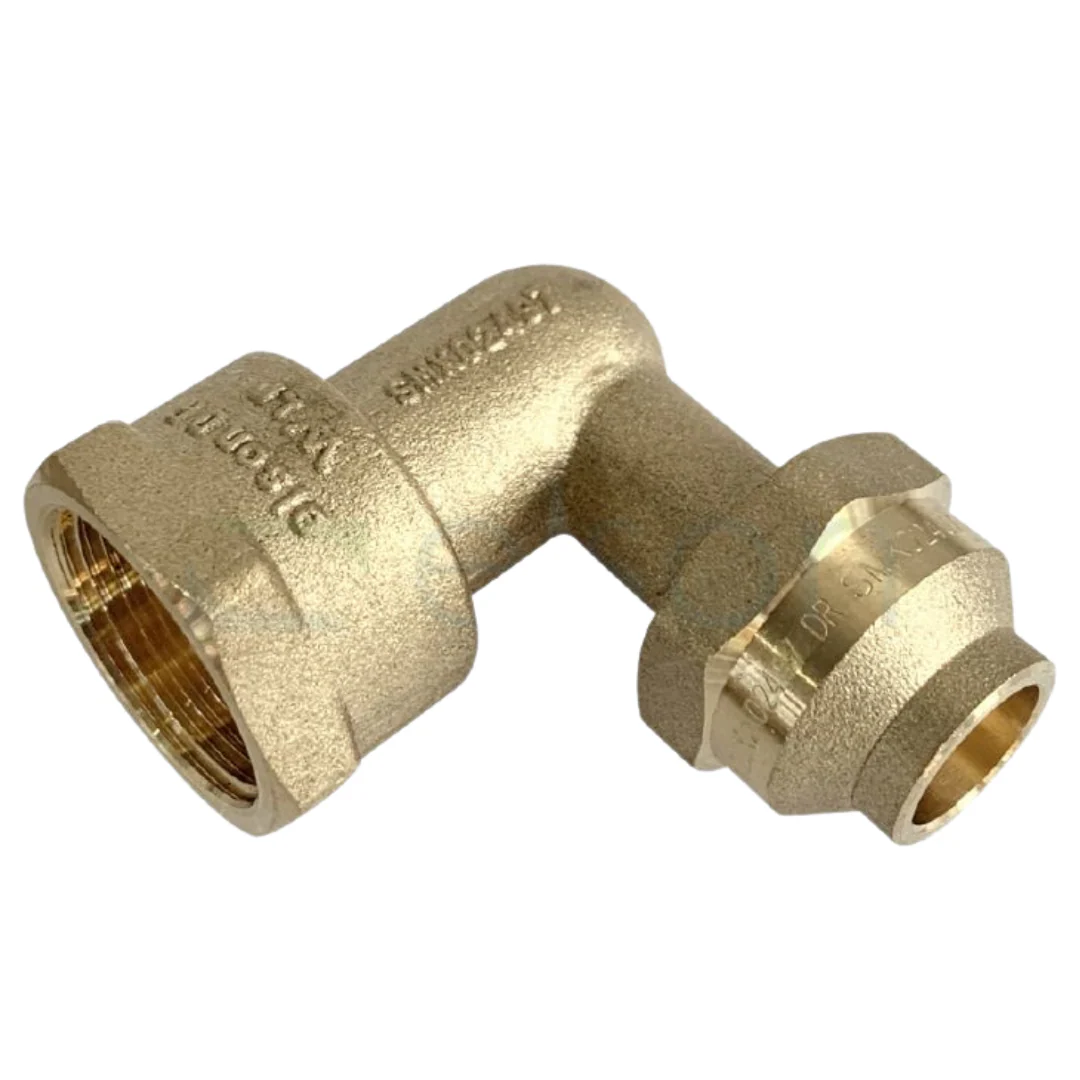

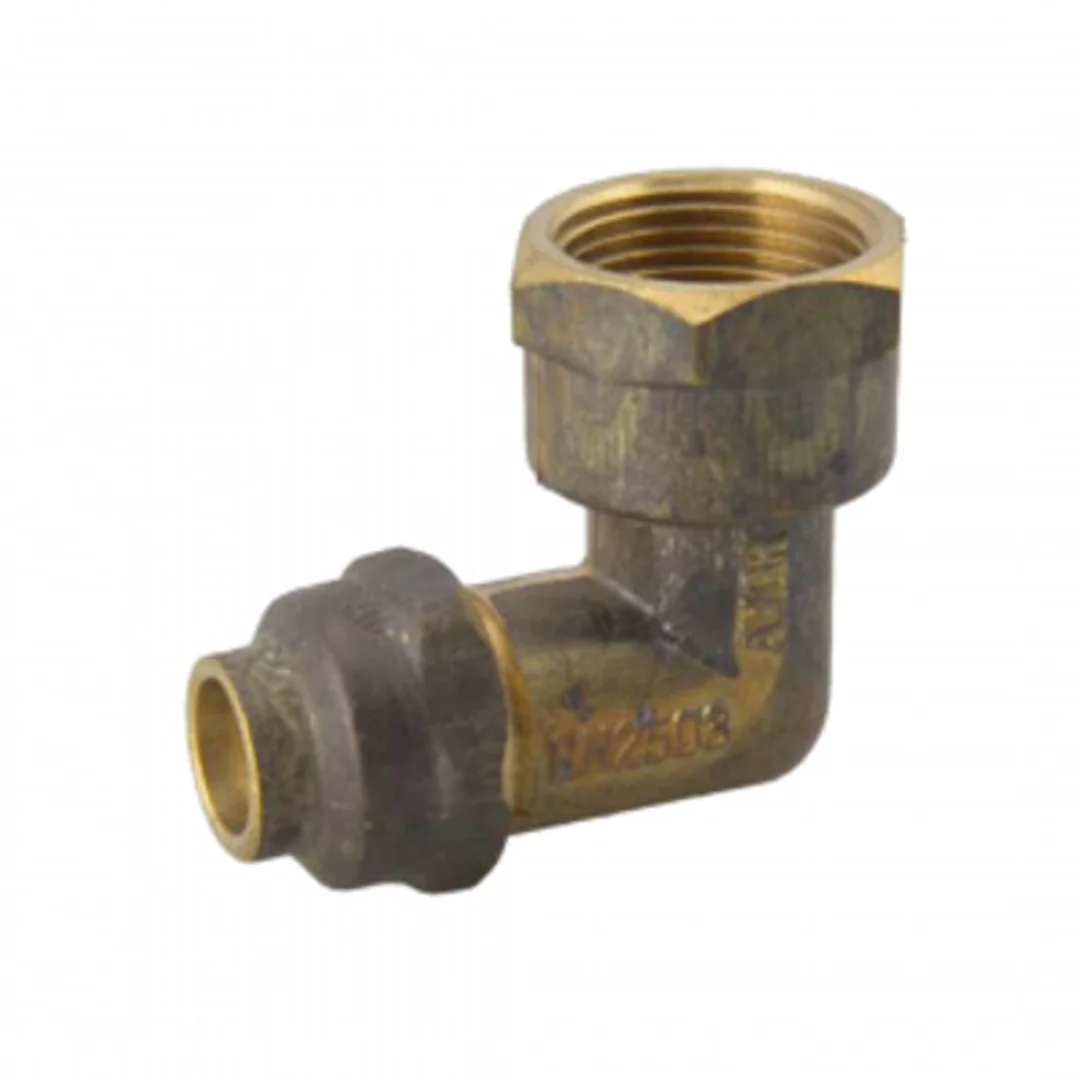

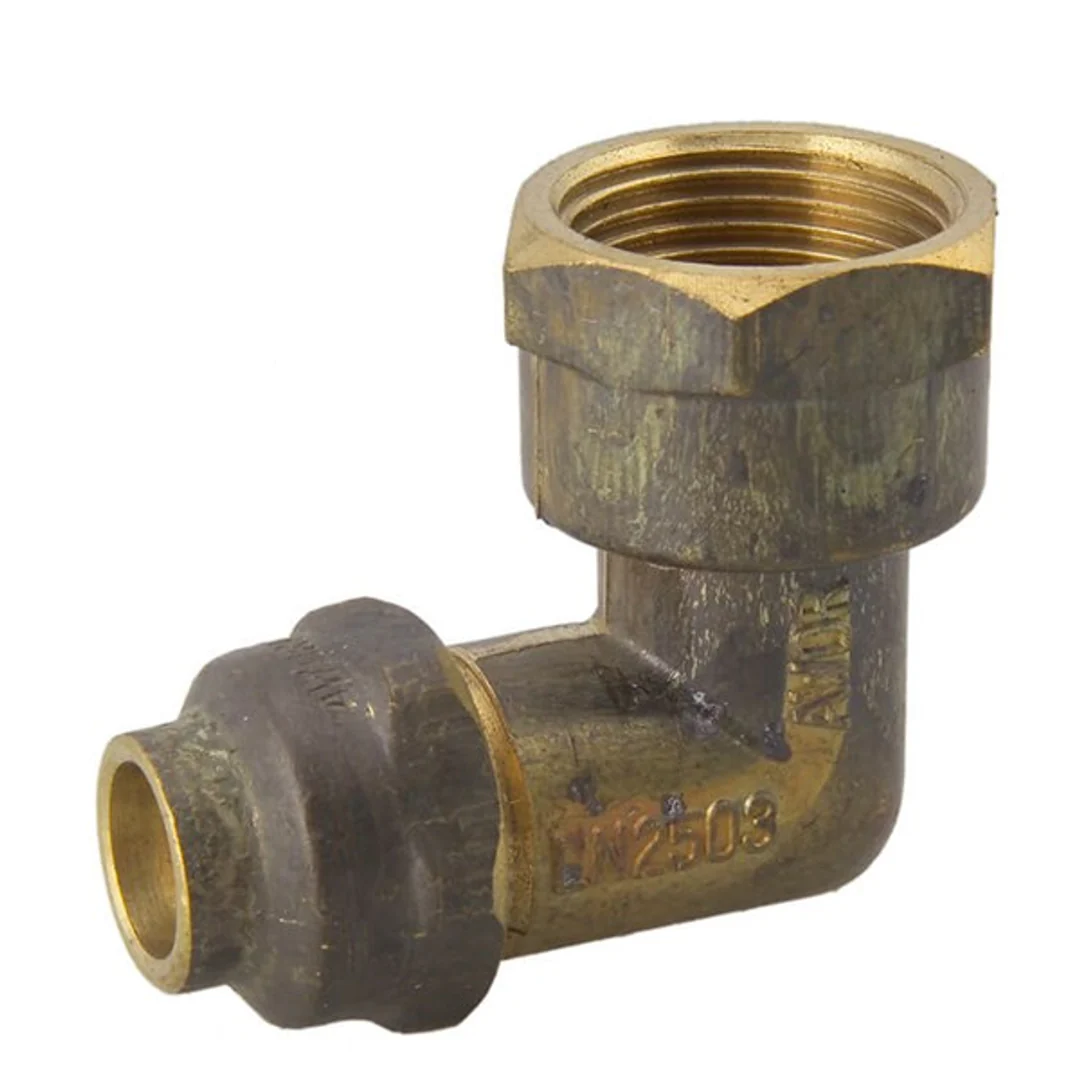

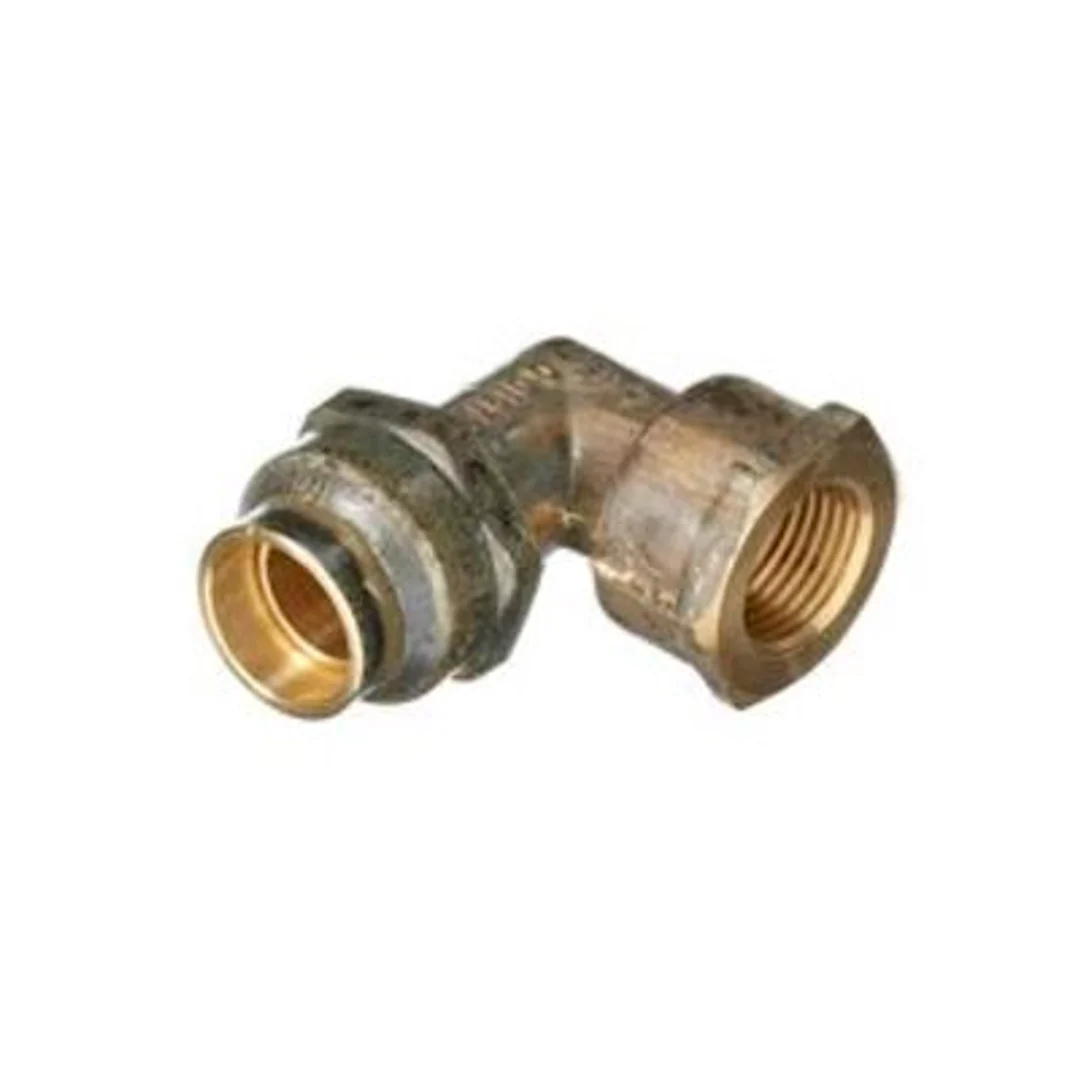

Reducing Compression Elbow Female
Reducing Compression Elbow Female (12mm to 25mm Range)
Brass 90° Elbow with Female Thread to Compression Connection – Reducing Sizes
The Reducing Compression Elbow Female is a precision-engineered brass fitting designed for 90-degree pipe direction changes where a reduction in size is required. It features a female threaded (FI) connection on one end and a compression nut (CN) on the other, allowing for secure and reliable transitions between different pipe diameters.
Made from low lead brass and compliant with Australian standards, this elbow is WaterMark certified and safe for use in potable water applications. Its durable brass construction provides high resistance to corrosion and mechanical wear, making it suitable for both residential and commercial plumbing systems.
Key Features:
- Brass body for strength and corrosion resistance
- Female thread to compression nut – reducing connection
- WaterMark certified and lead-free for potable water use
- Complies with AS 3688 for performance and quality
- Maximum working temperature: 1°C to 95°C
- Maximum pressure rating: 1600 kPa
- Supplied in single unit packaging
Available Variants (FI x CN – Reducing Size):
| Product Code | Description | Size |
|---|---|---|
| FCF0511 | ELBOW COMP/FEMALE 12MM FI X 20MM CN FEL | 12mm FI x 20mm CN |
| FCF0513 | ELBOW COMP/FEMALE 20MM FI X 12MM CN FEL | 20mm FI x 12mm CN |
| FCF0515 | ELBOW COMP/FEMALE 20MM FI X 25MM CN FEL | 20mm FI x 25mm CN |
| FCF0517 | ELBOW COMP/FEMALE 25MM FI X 20MM CN FEL | 25mm FI x 20mm CN |
Typical Applications:
- Transitioning between different pipe sizes in confined spaces
- Plumbing installations requiring 90° directional change
- Potable water systems in domestic or commercial projects
- Compatible with copper and PEX piping when used with appropriate inserts
The Reducing Compression Elbow Female offers a secure, efficient solution for angled plumbing connections where different pipe sizes meet, while ensuring long-term performance and compliance with Australian plumbing regulations.
Â
