Stormwater 90 Degree Bend FF

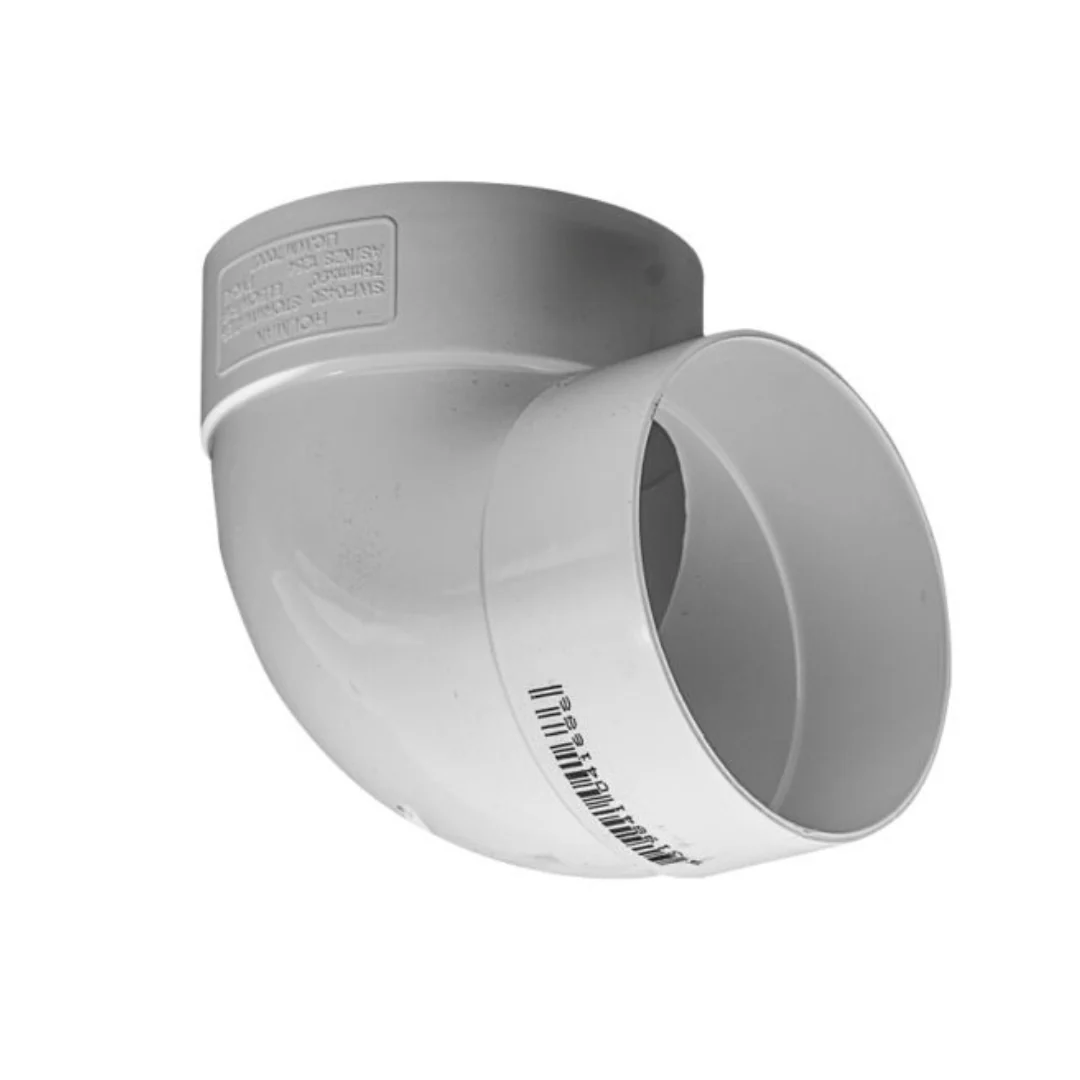

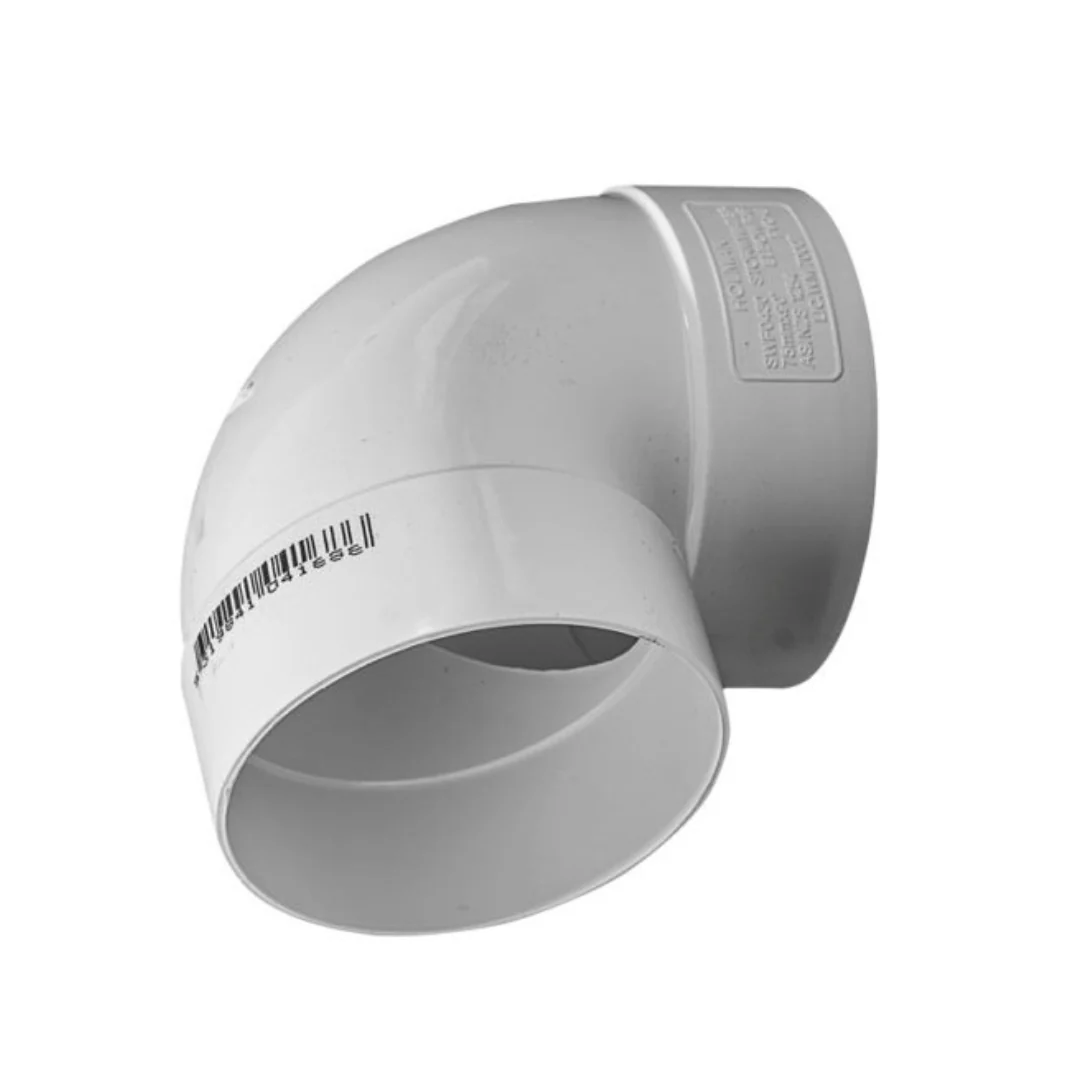

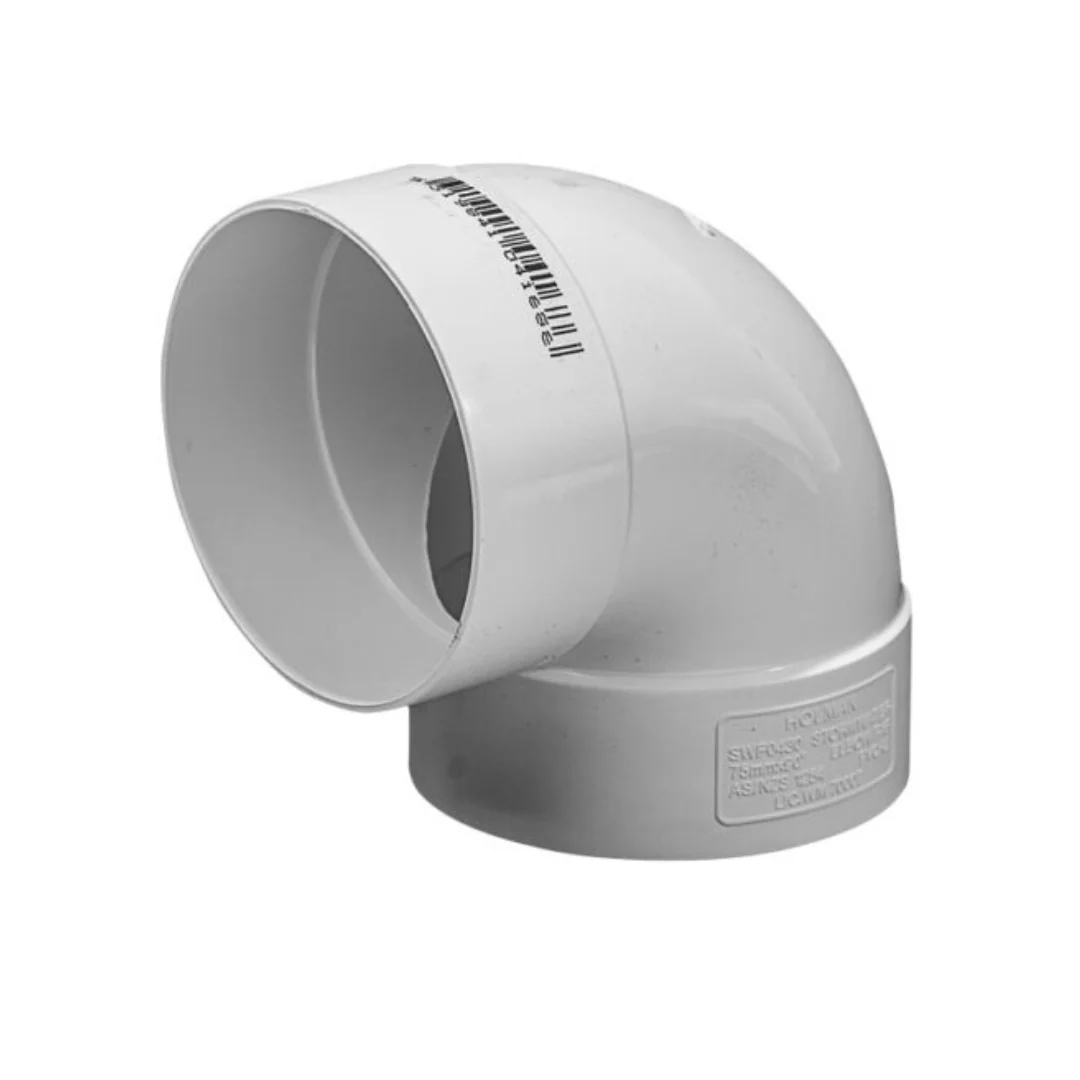

Stormwater 90° Bend FF – PVC-U

Stormwater 90° Bends FF (Female-Female) are designed to provide a right-angle change of direction in stormwater pipelines. Both ends of the fitting are female, allowing pipes to be inserted for secure, leak-free connections. These bends are essential for domestic and commercial rainwater drainage systems, including gutter and downpipe connections.

Manufactured from rigid PVC-U, these fittings are corrosion-resistant, durable, and suitable for above-ground or underground stormwater installations.

Key Features

• Durable PVC-U Construction – Resistant to corrosion, chemicals, and biological growth.
• Female-Female (FF) Connection – Both ends accept pipes for easy installation.
• Smooth 90° Bend – Optimizes water flow and reduces pooling in stormwater systems.
• Wide Application – Compatible with pipe sizes from 75mm to 375mm.
• Solvent Cement Jointing – SCJ system ensures strong, leak-free connections.
• UV & Temperature Resistant – Can be exposed to sunlight; recommended temperature range 0–50°C.
• Compliance – Manufactured to AS/NZS 1254 standards.

Specifications

• Material: PVC-U (unplasticised PVC)
• Pipe Connection Type: Female-Female (FF)
• Bend Angle: 90°
• Installation: Solvent Cement Joint (allow 24-hour setting)
• Applications: Stormwater drainage, gutter connections, downpipe adaptation
• Pipe Length Compatibility: Works with 6m PVC-U pipes

Variants (SKU – Size)

• PSW004 — 75mm 90° Bend FF
• PSW009 — 90mm 90° Bend FF
• PSW012 — 150mm 90° Bend FF
• PSW015 — 225mm 90° Plain Bend FF
• PSW018 — 300mm 88° Plain Bend FF
• PSW018E — 375mm 90° Plain Bend FF

Note: Pipes and fittings must be joined using solvent cement (SCJ) with a 24-hour setting period for full mechanical strength. Designed specifically for stormwater (rainwater) systems.
