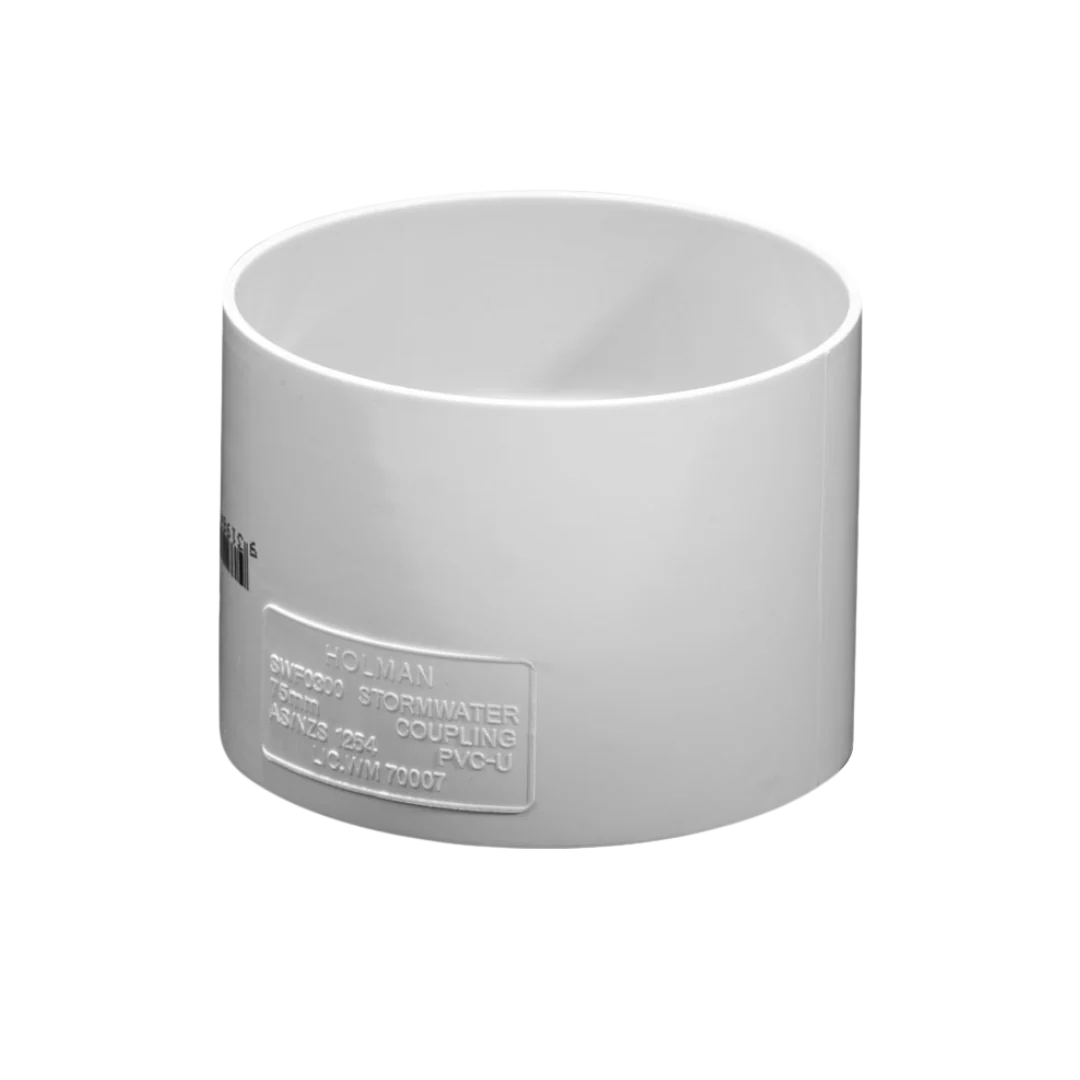

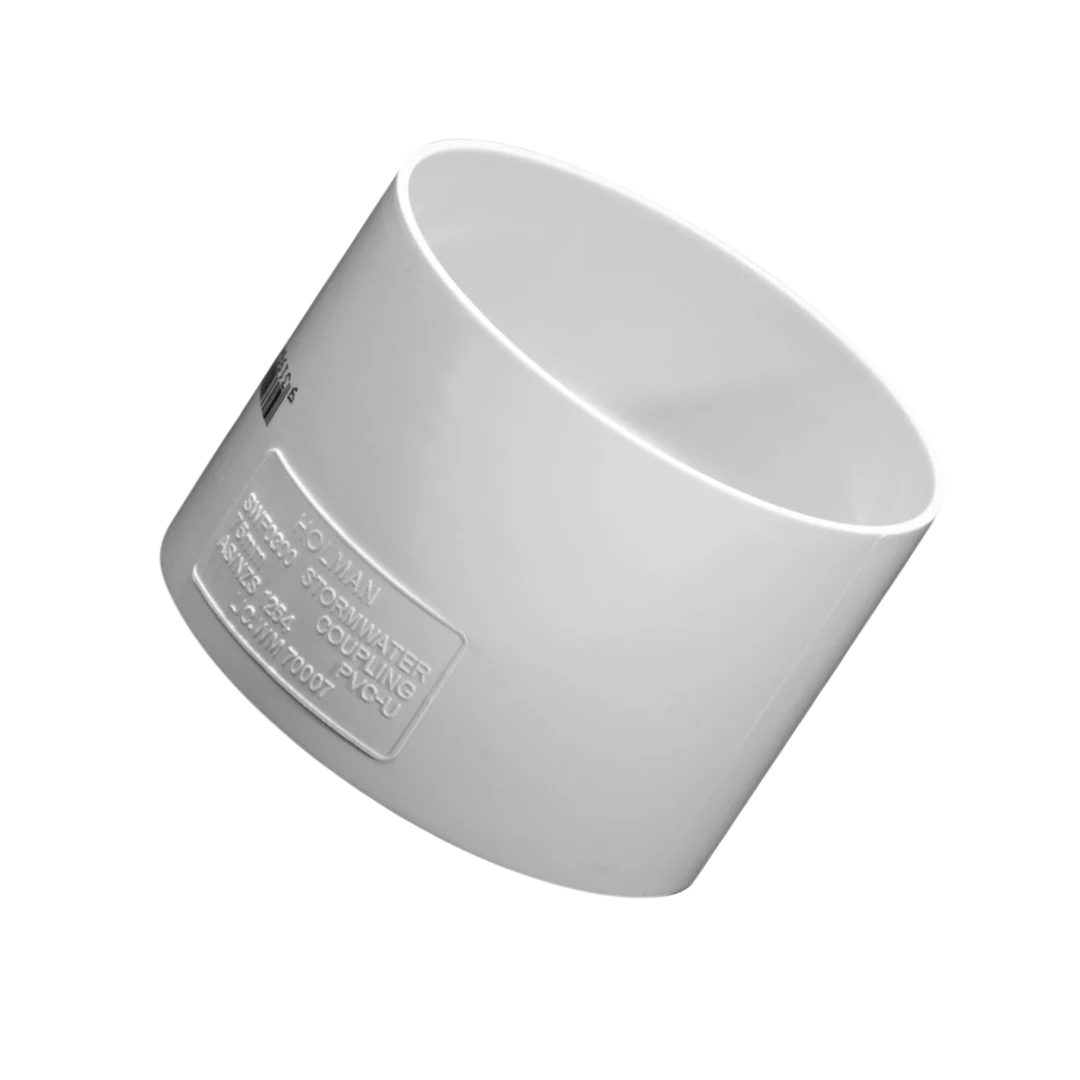

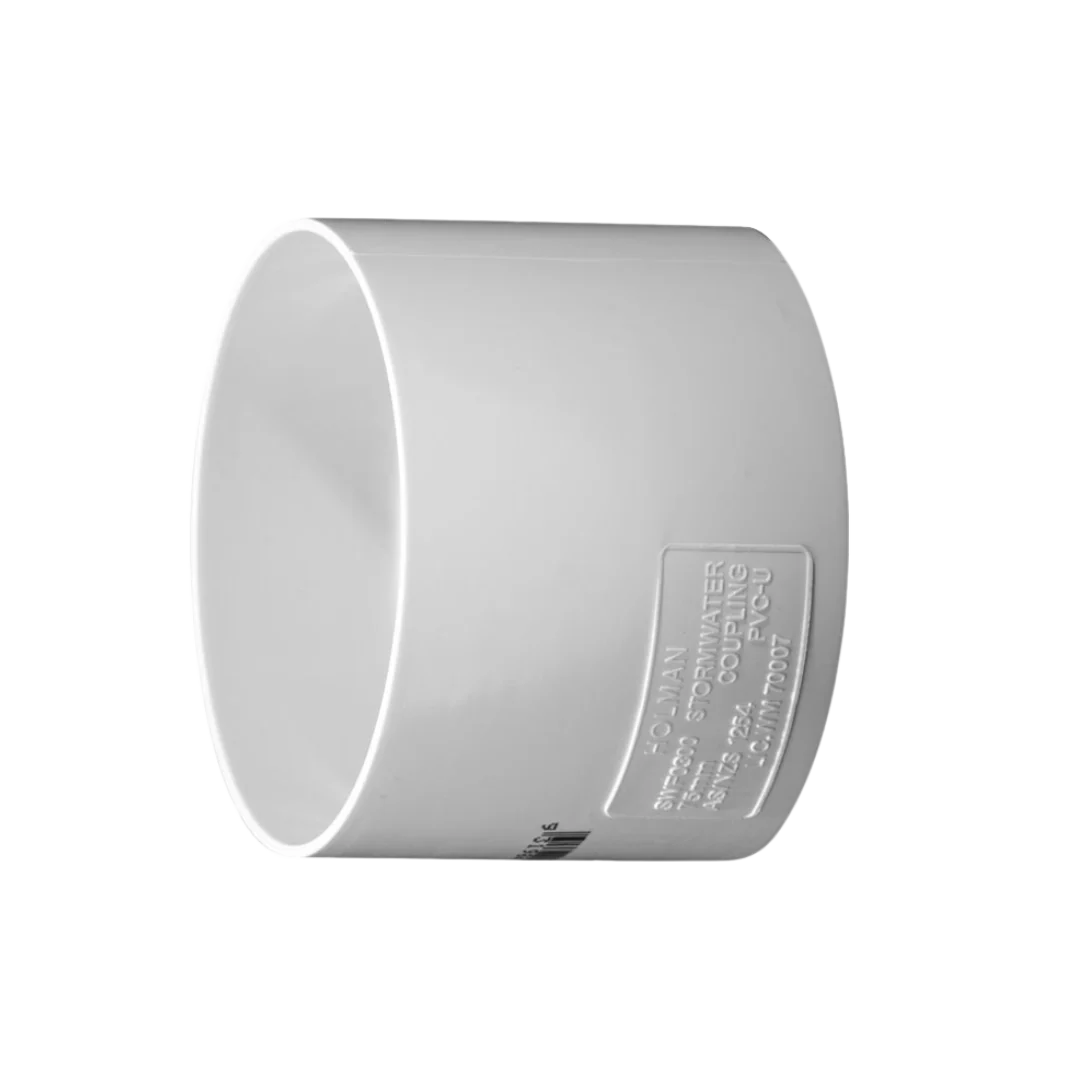

Stormwater Straight Coupling

Stormwater Straight Coupling – PVC-U

The Stormwater Straight Coupling is used to securely join two sections of stormwater pipe in a straight run. Ideal for repairs, extensions, or general installation, these couplings ensure a strong, watertight connection.

Manufactured from durable PVC-U, they provide long-lasting performance in above-ground and underground stormwater drainage applications.

Key Features

• Straight Connection – Joins two pipes of the same diameter.
• Durable PVC-U – Resistant to corrosion, chemicals, and biological growth.
• Smooth Internal Surface – Improves flow efficiency and reduces the risk of blockages.
• Easy Installation – Designed for solvent cement jointing (SCJ).
• Versatile Use – Suitable for domestic, commercial, and civil stormwater systems.
• Standards Compliant – Manufactured to AS/NZS 1254.

Specifications

• Material: PVC-U (unplasticised PVC)
• Connection Type: Socket x Socket (SCJ or threaded option)
• Installation: Solvent Cement Joint system (SCJ); allow 24 hrs curing time
• Temperature Range: 0–50 °C
• Applications: Stormwater drainage, pipe repairs, extensions, and maintenance

Variants (SKU – Size)

• PSW050 — Straight Coupling 75mm
• PSW060 — Threaded Coupling 90mm
• PSW052 — Straight Coupling 150mm
• PSW052C — Straight Coupling 300mm (Plain)

Note: Threaded couplings (e.g., PSW060) are not BSP threaded and require matching fittings. Always use solvent cement for permanent installations.
