TOTO Hayon BTW Pan

TOTO Hayon BTW Pan

The TOTO Hayon Back-to-Wall (BTW) Pan CW252PJT1WS delivers a perfect balance of sculpted elegance and cutting-edge performance. Designed for contemporary bathrooms, it features a high-profile, close-coupled design with wall-faced styling that conceals the trapway, offering a clean, streamlined look that’s easy to maintain.

Powered by TOTO’s innovative TORNADO FLUSH system, this pan provides a powerful, efficient flush while conserving water. The rimless bowl design enhances hygiene by eliminating hidden crevices, and the CEFIONTECT ceramic glaze creates an ultra-smooth, ion-barrier surface that resists dirt and waste buildup. With a dual flush system (4.5L / 3L), it ensures both environmental sustainability and high performance.

Please note: This product includes the TOTO Hayon BTW Pan only.

To complete installation, the following items are required:

• TOTO Hayon BTW Cistern – Model: SW252JPT1 / 252-8P

• Soft Close Seat – Model: TC252SJ

• S-Connector – Model: THX918

Key Features

• Sculpted, high-profile back-to-wall design
• Concealed trapway for a sleek, modern finish
• TORNADO FLUSH for powerful, water-efficient performance
• Rimless bowl for maximum hygiene and easy cleaning
• CEFIONTECT glaze prevents waste and bacteria buildup
• Dual flush system: 4.5L / 3L
• D-shape bowl for ergonomic comfort
• Water-saving design

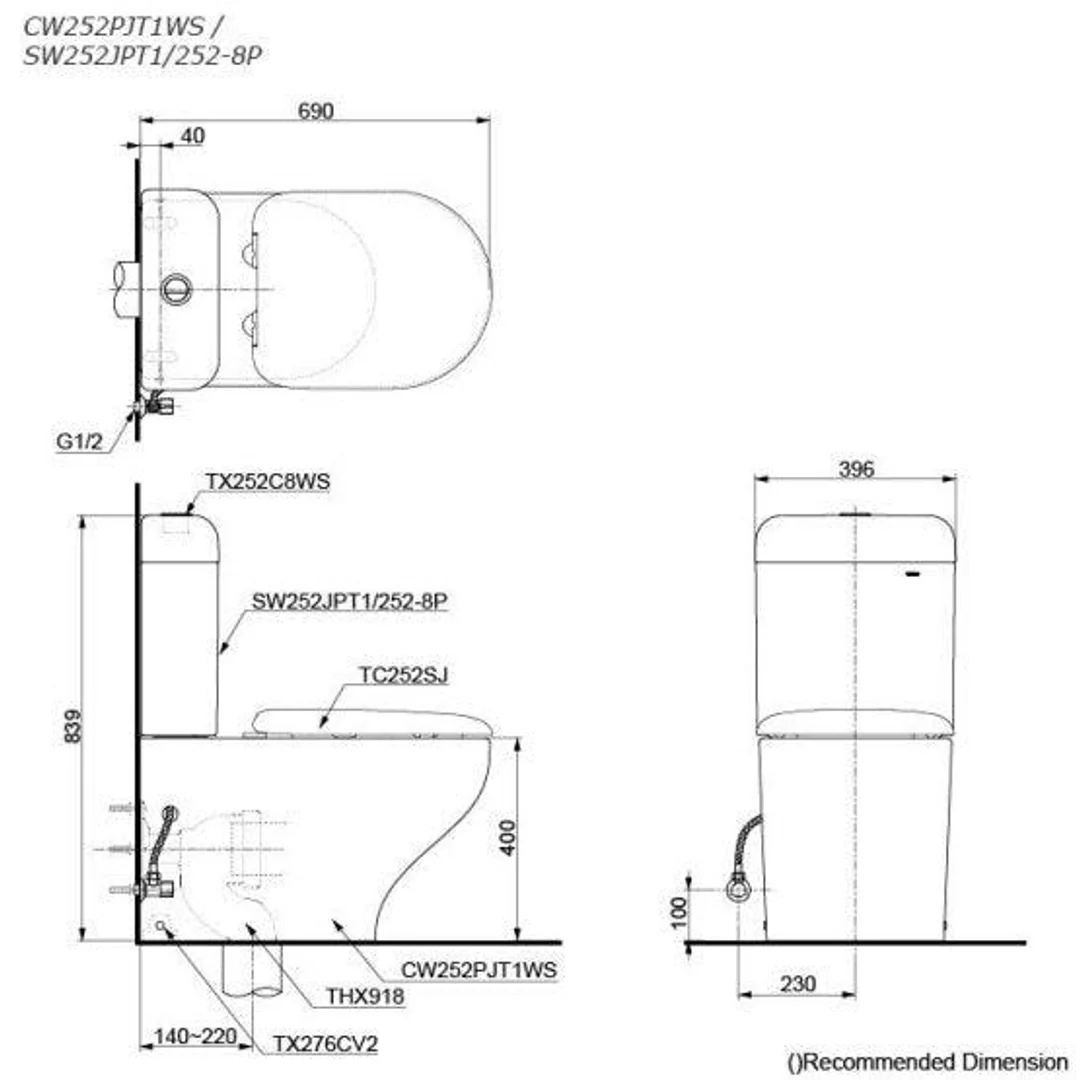

Specifications

• Size: 396W x 690D x 839H mm
• Water Pressure: 0.05MPa–0.75MPa
• Rough-in: 140–220 mm (S-Trap, THX918)

Elevate your bathroom with the TOTO Hayon BTW Pan, combining sophisticated design, exceptional hygiene, and sustainable water efficiency for a truly modern upgrade.

Downloads

Specification Sheet
