Caroma Leda Invisi Series II Toilet Suite Wall Faced White

Caroma Leda Invisi Series II Toilet Suite Wall Faced White

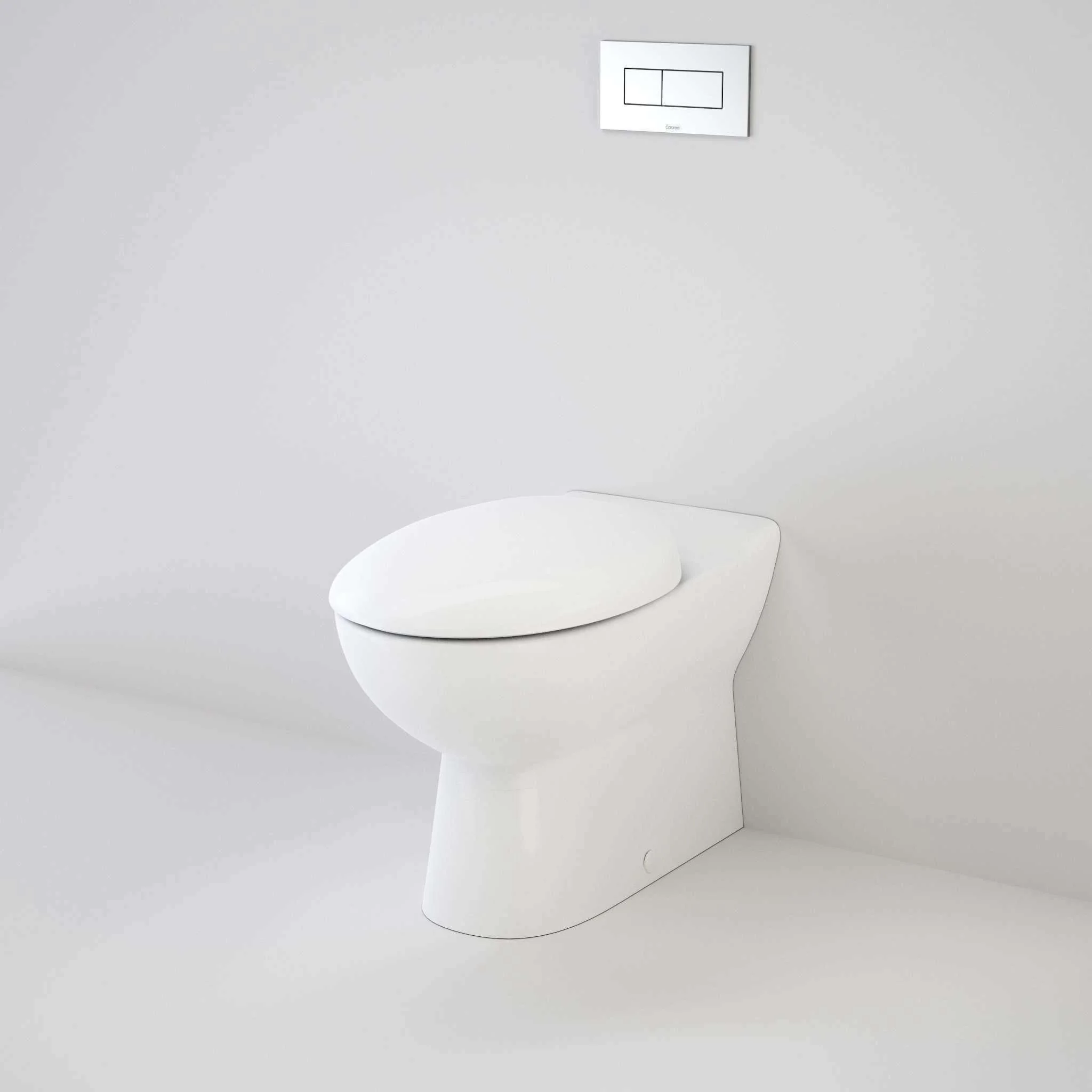

The Caroma Leda Invisi Series II suite is a premium, space-saving solution designed to enhance modern bathrooms with its sleek, minimalist aesthetic and advanced functionality.

Product Overview
The Leda Invisi Series II suite features a wall-faced design that sits flush to the floor, creating a streamlined look that simplifies cleaning and maintenance. Its smooth, easy-to-clean lines and concealed cistern contribute to a contemporary bathroom aesthetic.

Key Features

• Invisi Series II Concealed Cistern: Suitable for induct, in-ceiling, in-wall, or undercounter installations, offering flexibility in bathroom design.
• Universal Trap Pan: Compatible with both S and P trap installations, providing versatility during installation.
• Caroma Uni-Orbital® Connector: Allows for up to 50mm of alignment flexibility, ensuring a precise fit.
• Caroma Adjustable Flushpipe: Facilitates alignment of the water inlet to the pan, accommodating various plumbing configurations.
• Pedigree II Seat: Includes a soft-close seat with a rounded top for comfort and safety.
• Water Efficiency: WELS 4 Star rated, with a full flush of 4.5L and a half flush of 3L, averaging 3.5L per flush.
• Durability: Constructed from high-quality vitreous china, ensuring longevity and ease of maintenance.

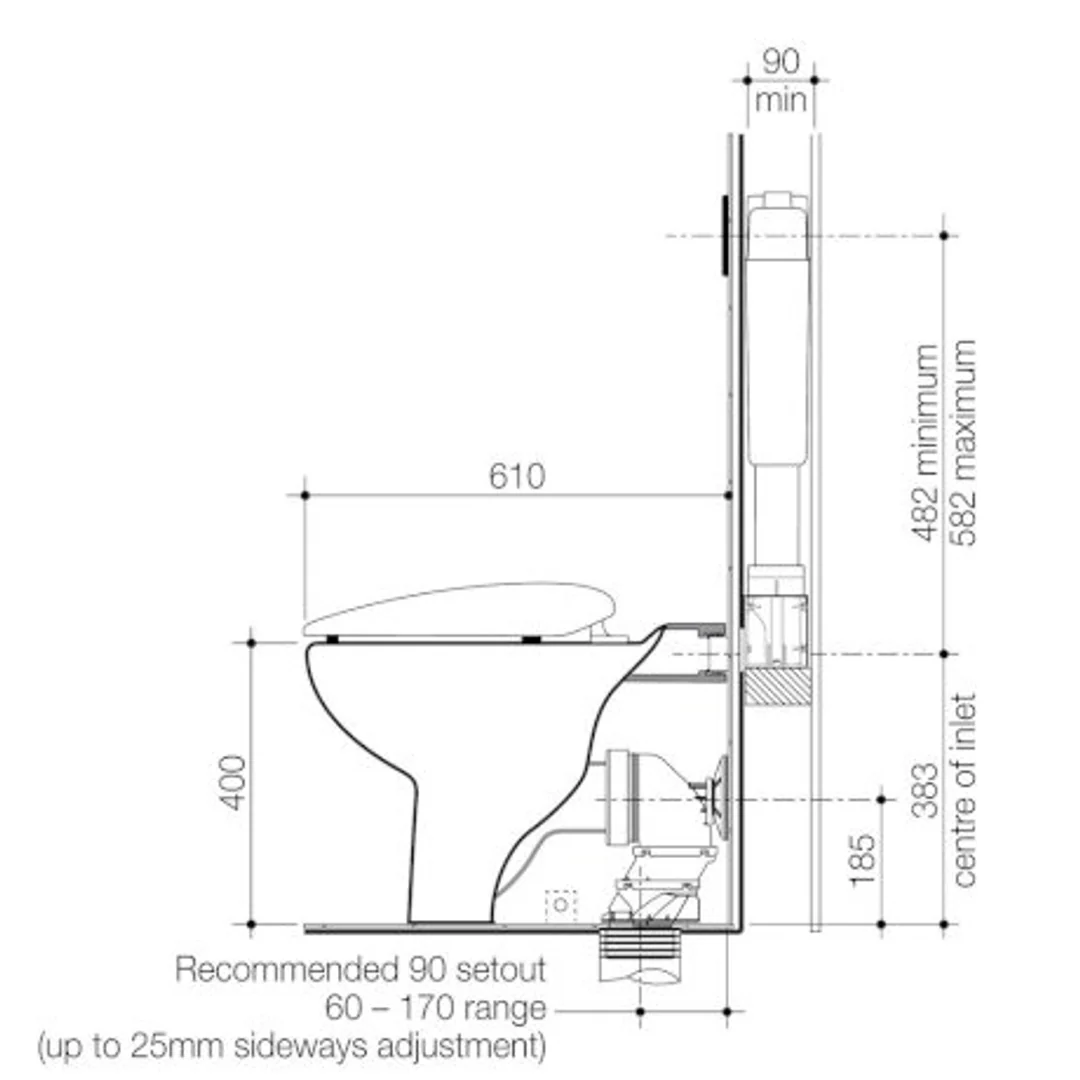

Specifications

• Pan Height: 400 mm
• Pan Projection: 610 mm
• Pan Width: 355 mm
• Trap Setout:
• P Trap: 185 mm
• S Trap: 60–170 mm
• Seat Mounting Width: 150 mm
• Cistern Included: Yes
• Seat Included: Yes

Warranty:

Pan: 20 years (replacement product)

Seat & Cistern: 1 year (parts and labour)

Ideal For

• Modern Bathrooms: Enhances contemporary bathroom designs with its sleek and minimalist appearance.
• Renovations: Perfect for upgrading existing bathrooms to a more modern and efficient setup.
• New Builds: Suitable for new constructions aiming for a clean and modern aesthetic.
• Space-Conscious Installations: Ideal for bathrooms where space-saving and ease of cleaning are priorities.

Additional Information
Buttons for flushing are sold separately, allowing for customization to match bathroom décor. The suite includes rough-in and fit-out kits, simplifying the installation process. For undercounter installations, a fixed flushpipe (code: 237222) is recommended.

The Caroma Leda Invisi Series II Wall Faced Toilet Suite combines functionality with contemporary design, making it a valuable addition to modern bathrooms.

Downloads

Specification Sheet
