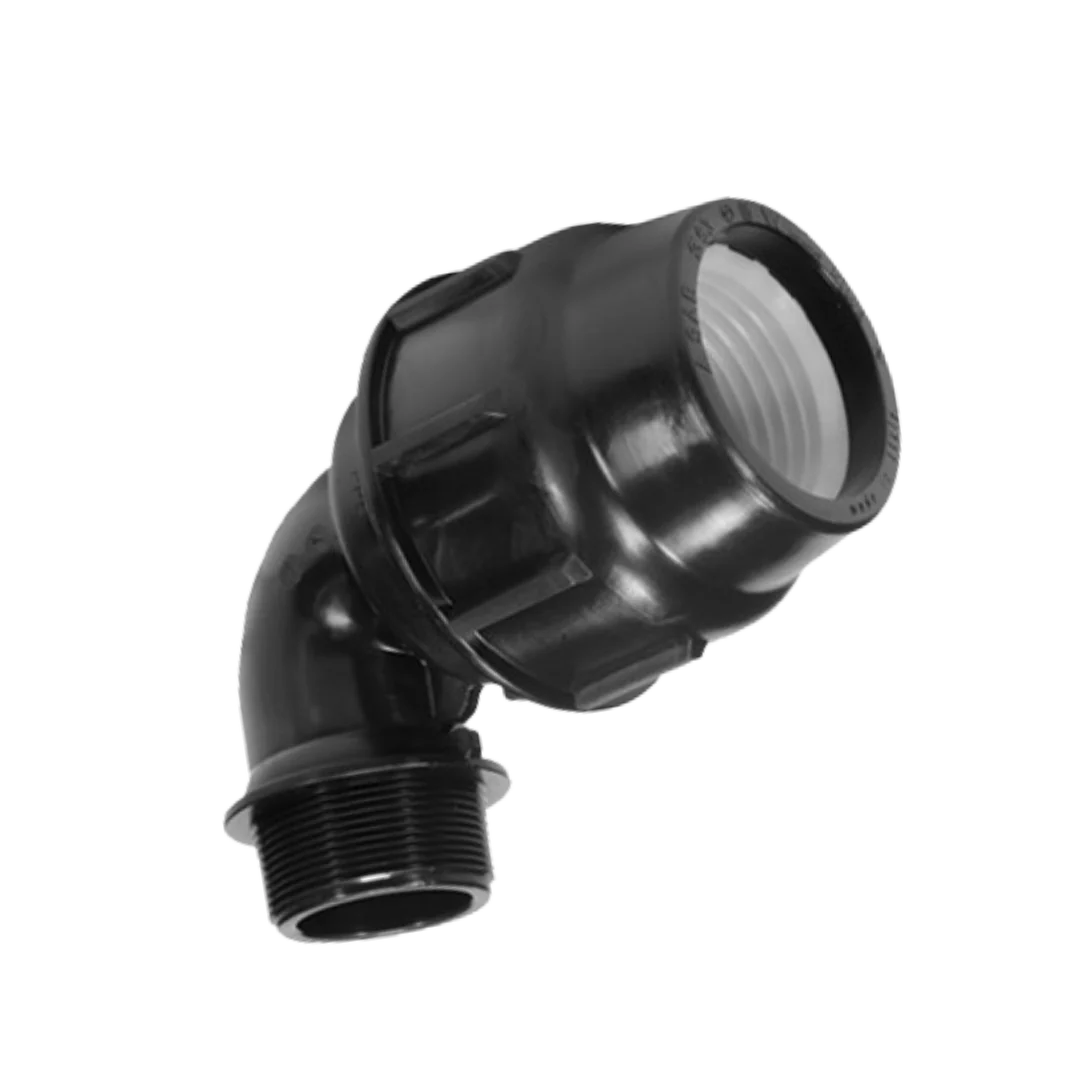

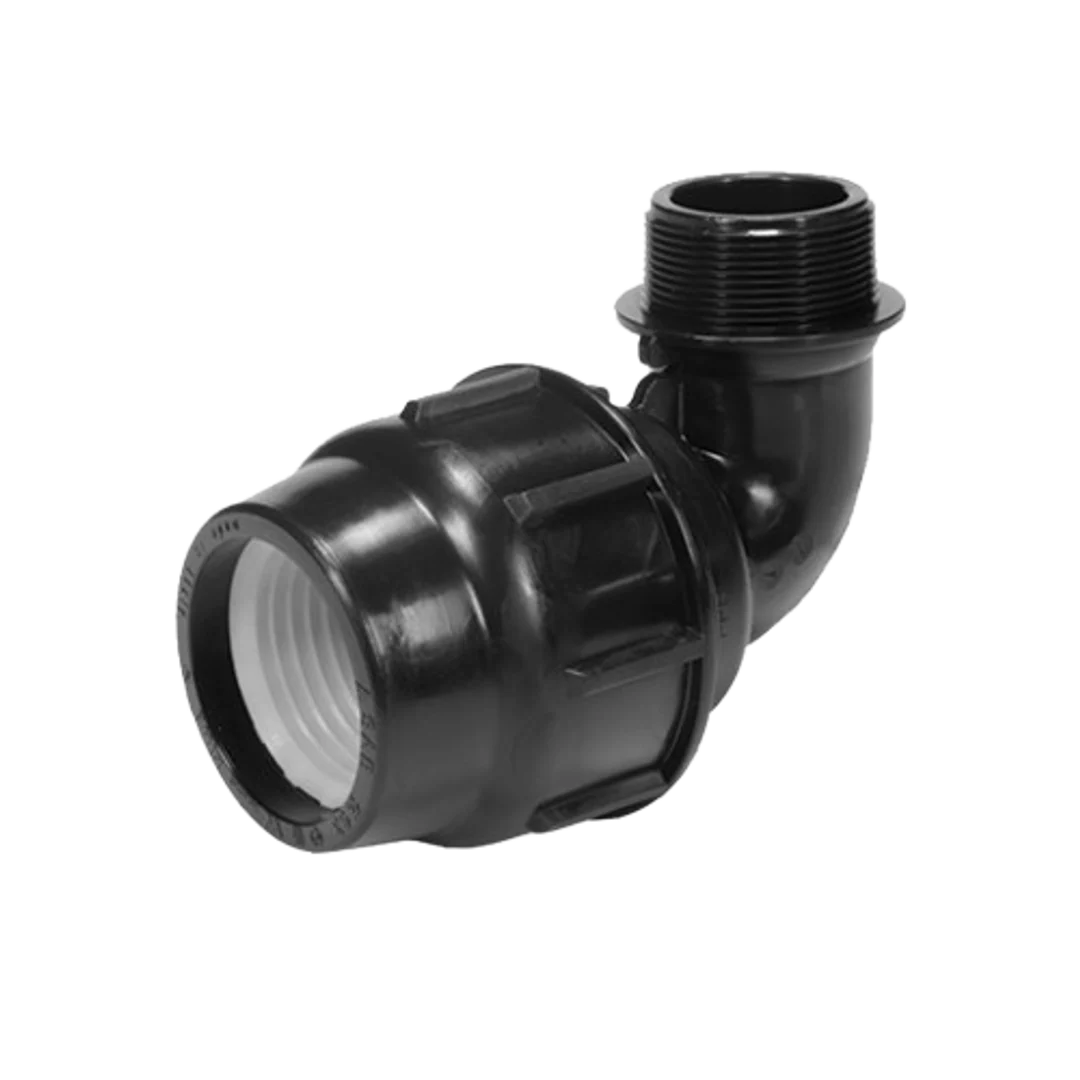

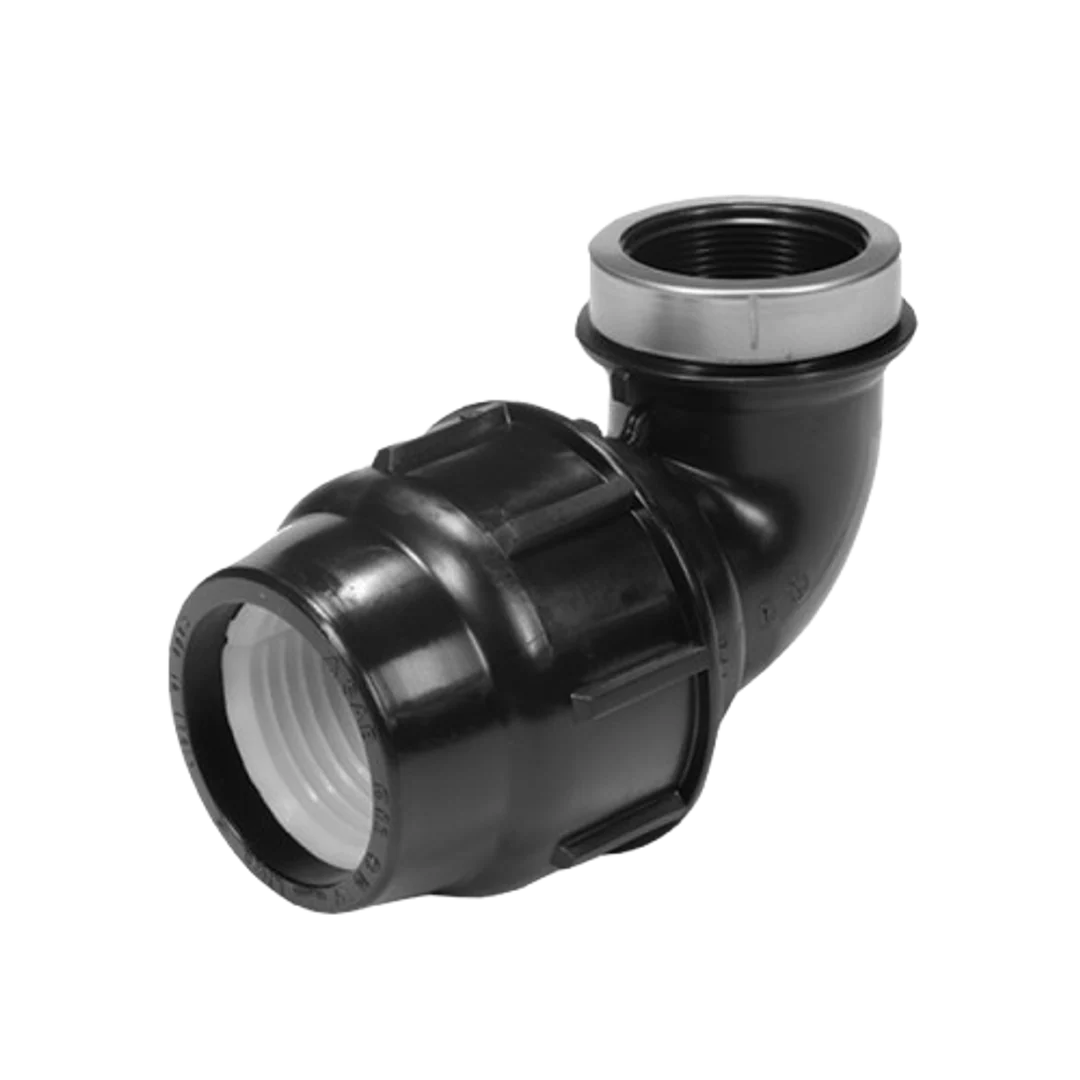

Poly Metric Equal Female Elbow

Poly Metric Equal Female Elbow

The Poly Metric Equal Female Elbow is a 90° compression fitting designed to connect poly pipe to a male threaded fitting, ensuring a durable, watertight joint. Perfect for residential, commercial, and irrigation applications.

Features & Benefits:

• Strong compression fitting with O-ring seal for leak-proof connections
• Manufactured from high-performance black polyethylene (PE)
• Excellent UV, chemical, and corrosion resistance
• Maintains a secure connection for long-term performance
• Designed for poly pipe systems (not for direct threading into pipe)
• Certified to AS/NZS4129 & ISO14236 standards
• Complies with AS/NZS4020 – safe for drinking water applications
• Suitable for working pressures up to PN16 (1600 kPa / 235 psi)
• Wide range of sizes available

Available Variants:

• PBM223 — 20P x 20mm FI
• PBM227 — 25P x 25mm FI
• PBM230 — 32P x 32mm FI
• PBM232 — 40P x 40mm FI
• PBM236 — 50P x 50mm FI

Note: A licensed plumber is required for installation if connected to mains water systems.
