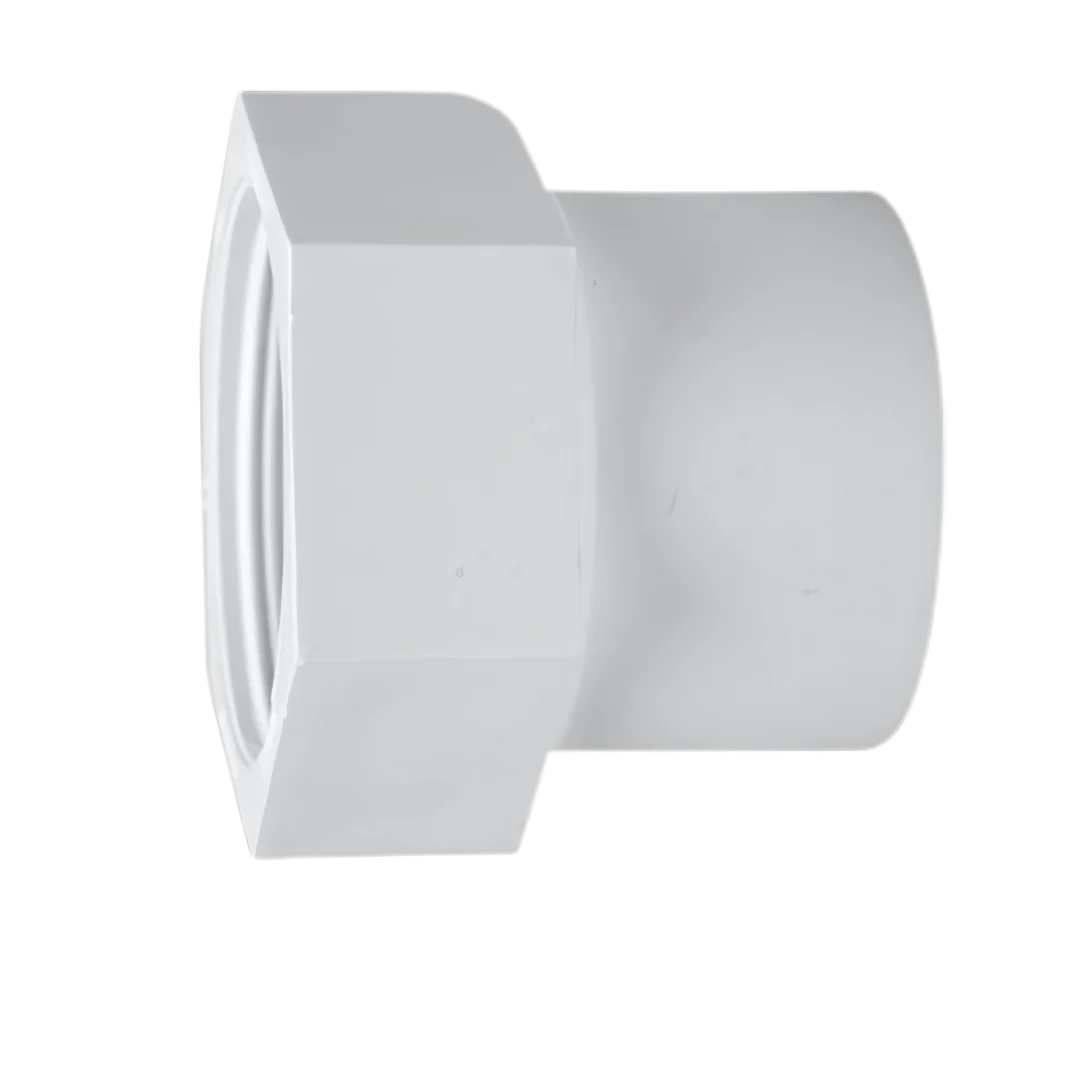

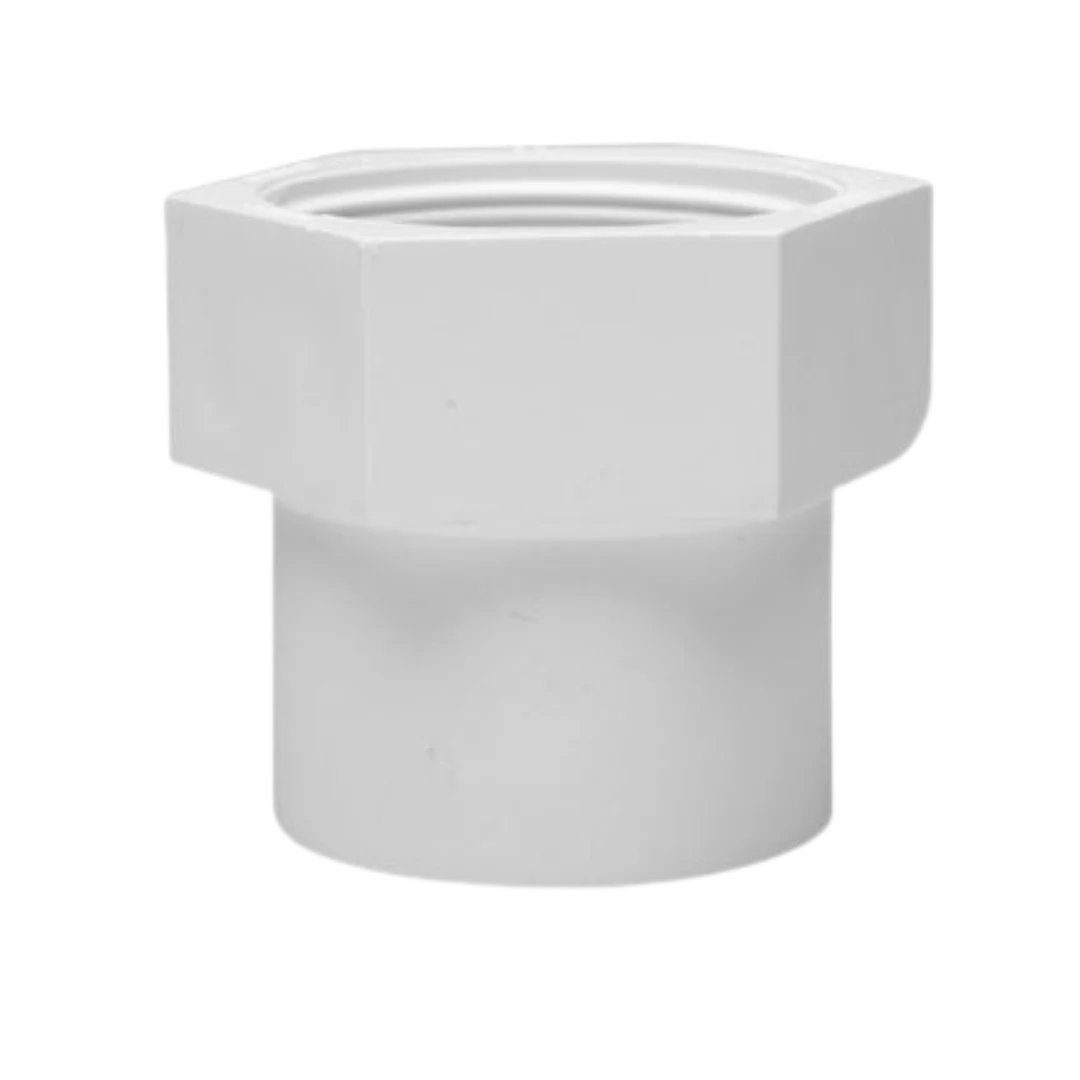

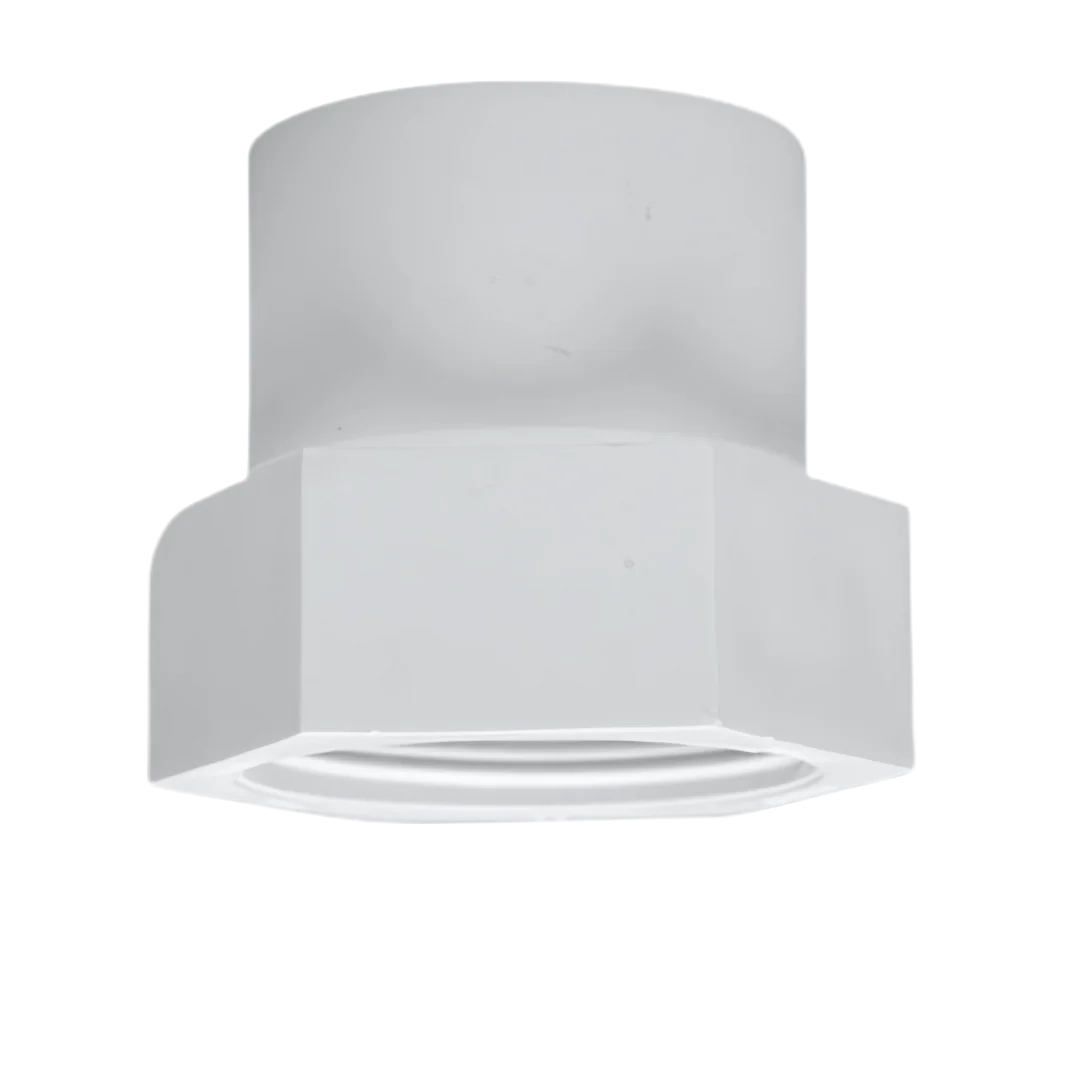

PVC Pressure Female Adaptor

PVC Pressure Female Adaptor (Cat 3)

Description:
The PVC Pressure Female Adaptor (Cat 3) is designed to connect a PVC pressure fitting to a male-threaded connection. This adaptor features a solvent-weld end that fits into a PVC fitting (same size as pipe) and a female threaded end that allows for connection to threaded pipe, valves, or fittings.

Manufactured from PVC-U (unplasticised polyvinyl chloride), this adaptor ensures strength, durability, and resistance to corrosion and chemicals. It is suitable for both above-ground and underground installations in pressure-rated pipeline systems.

Key Features:

• Connects PVC pressure fittings to male-threaded components
• One solvent-weld socket end & one female-threaded end
• High-quality PVC-U construction for long service life
• White or off-white finish
• Simple installation using solvent cement jointing
• Corrosion, chemical, and UV resistant
• Wide size range available (12mm–100mm)

Applications:

• Potable water pipelines
• Pumped sewerage and effluent systems
• Irrigation and turf watering
• Slurry transport
• Pressure sewerage
• Recycled water networks
• Gas systems (requires special yellow pipe)

Specifications:

• Material: PVC-U (rigid)
• Type: Female Adaptor (Cat 3)
• Connection: Solvent weld socket × Female BSP thread
• Pressure Rating: PN18 (1800 kPa)
• Pipe Compatibility: PN4.5–PN18 rated pipes
• Temperature Range: 0°C to 50°C (special consideration required outside this range)
• Standards:
  • AS/NZS 1477 – PVC pipes and fittings for pressure applications
  • AS/NZS 4020 – Products in contact with drinking water
• Compliance: WaterMark certified
• Cure Time: 24 hours before pressurisation

Performance Notes:

• Not typically used in domestic housing
• Reliable for both underground and above-ground installations
• Provides a secure transition between solvent-weld and threaded connections

Variants (Sizes):

• PPF030 — 12mm × 12mm FI
• PPF032 — 20mm × 20mm FI
• PPF035 — 25mm × 25mm FI
• PPF039 — 32mm × 32mm FI
• PPF042 — 40mm × 25mm FI
• PPF043 — 40mm × 32mm FI
• PPF044 — 40mm × 40mm FI
• PPF047 — 50mm × 25mm FI
• PPF050 — 50mm × 50mm FI
• PPF052 — 80mm × 80mm FI
• PPF053 — 100mm × 100mm FI
