PVC Pressure Female Tee
HomeStore

PVC Pressure Female Tee

PVC Pressure Female Tee

PVC Pressure Female Tee (Cat 21)

Description:
The PVC Pressure Female Tee (Cat 21) is designed to create a 90° branch in PVC pressure pipelines while adapting the branch outlet to a female threaded connection. The main run of the tee is solvent-welded to PVC pipe of equal size, while the centre branch is fitted with a female BSP thread, allowing secure connection to threaded fittings such as risers, valves, or sprinkler heads.

Made from high-quality PVC-U (unplasticised polyvinyl chloride), these tees are strong, reliable, and resistant to corrosion and chemicals, making them suitable for long-term use in pressure-rated systems.

Key Features:

  • Creates a 90° branch with a female-threaded outlet
  • Main run: solvent weld ends (equal size)
  • Branch outlet: female BSP thread (same or reduced size)
  • Manufactured from durable PVC-U
  • Corrosion, chemical, and UV resistant
  • Easy installation with solvent cement jointing (SCJ)
  • White or off-white finish
  • Available in a wide size range for versatile applications

Applications:

  • Potable water distribution
  • Pumped sewerage and effluent systems
  • Irrigation and turf watering (ideal for sprinkler risers)
  • Slurry transport
  • Pressure sewerage networks
  • Recycled water
  • Gas applications (with yellow PVC pipe only)

Specifications:

  • Material: PVC-U (rigid)
  • Type: Female Tee (Cat 21)
  • Connection: Solvent weld socket × Female BSP thread (branch)
  • Pressure Rating: PN18 (1800 kPa)
  • Pipe Compatibility: PN4.5–PN18 rated pipes
  • Temperature Range: 0°C to 50°C (special considerations outside this range)
  • Standards:
    • AS/NZS 1477 – PVC pipes and fittings for pressure applications
    • AS/NZS 4020 – Products for use in contact with drinking water
  • Compliance: WaterMark certified
  • Cure Time: 24 hours before pressurisation
  • Performance Notes:
  • Suitable for above-ground and underground installations
  • Not typically used in domestic housing systems
  • Provides a reliable threaded take-off point for irrigation, risers, and accessories

Variants (Sizes):

  • PPF280 — 12mm × 12mm FI (Equal)
  • PPF281 — 20mm × 12mm FI
  • PPF283 — 25mm × 12mm FI
  • PPF284 — 25mm × 20mm FI
  • PPF285 — 25mm × 25mm FI (Equal)
  • PPF286 — 32mm × 12mm FI
  • PPF288 — 32mm × 25mm FI
  • PPF291 — 40mm × 25mm FI
  • PPF293 — 50mm × 20mm FI
Select Size
From $0.89

Original: $2.54

-65%
PVC Pressure Female Tee—

$2.54

$0.89

More Images

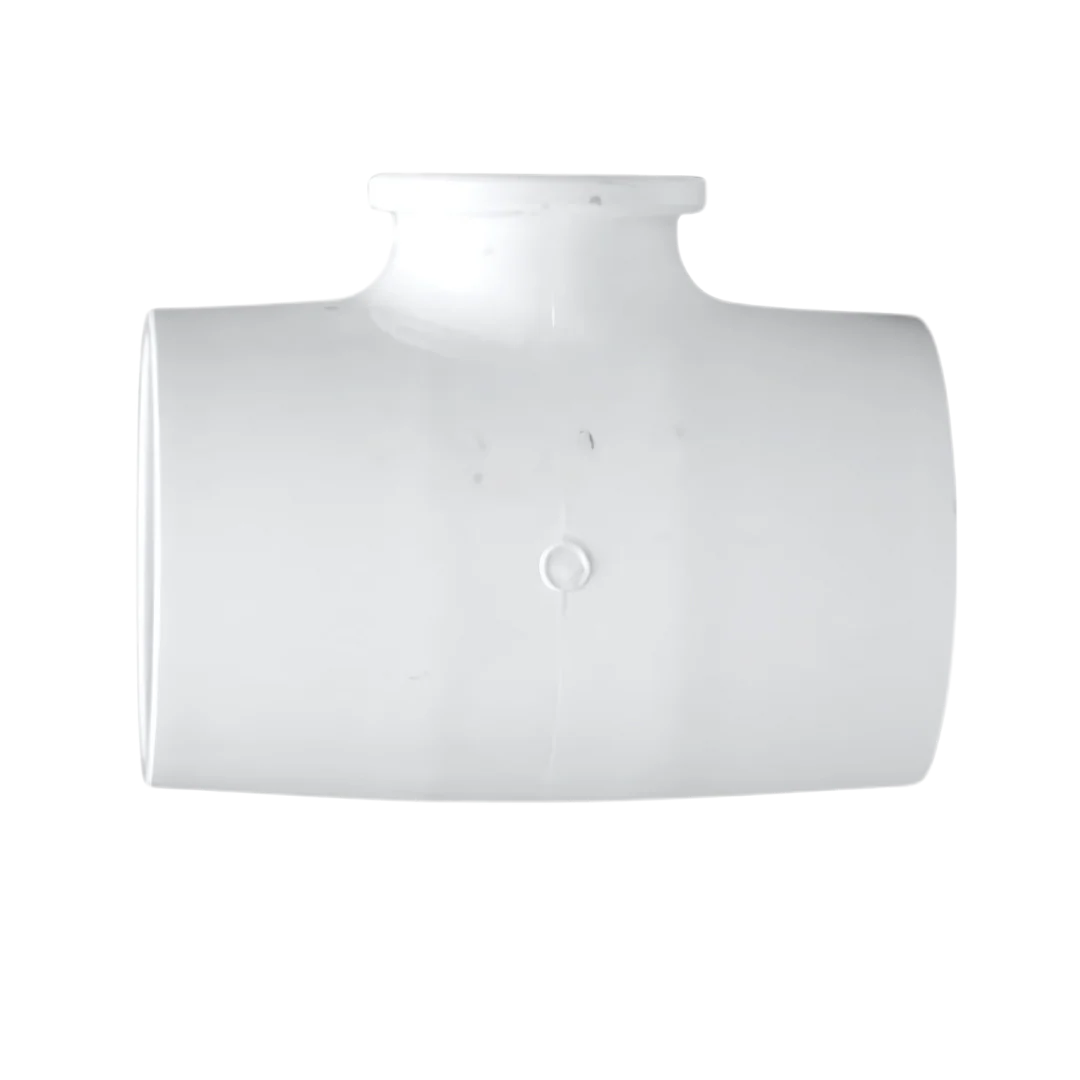

PVC Pressure Female Tee - Image 2
PVC Pressure Female Tee - Image 3

PVC Pressure Female Tee

PVC Pressure Female Tee (Cat 21)

Description:
The PVC Pressure Female Tee (Cat 21) is designed to create a 90° branch in PVC pressure pipelines while adapting the branch outlet to a female threaded connection. The main run of the tee is solvent-welded to PVC pipe of equal size, while the centre branch is fitted with a female BSP thread, allowing secure connection to threaded fittings such as risers, valves, or sprinkler heads.

Made from high-quality PVC-U (unplasticised polyvinyl chloride), these tees are strong, reliable, and resistant to corrosion and chemicals, making them suitable for long-term use in pressure-rated systems.

Key Features:

  • Creates a 90° branch with a female-threaded outlet
  • Main run: solvent weld ends (equal size)
  • Branch outlet: female BSP thread (same or reduced size)
  • Manufactured from durable PVC-U
  • Corrosion, chemical, and UV resistant
  • Easy installation with solvent cement jointing (SCJ)
  • White or off-white finish
  • Available in a wide size range for versatile applications

Applications:

  • Potable water distribution
  • Pumped sewerage and effluent systems
  • Irrigation and turf watering (ideal for sprinkler risers)
  • Slurry transport
  • Pressure sewerage networks
  • Recycled water
  • Gas applications (with yellow PVC pipe only)

Specifications:

  • Material: PVC-U (rigid)
  • Type: Female Tee (Cat 21)
  • Connection: Solvent weld socket × Female BSP thread (branch)
  • Pressure Rating: PN18 (1800 kPa)
  • Pipe Compatibility: PN4.5–PN18 rated pipes
  • Temperature Range: 0°C to 50°C (special considerations outside this range)
  • Standards:
    • AS/NZS 1477 – PVC pipes and fittings for pressure applications
    • AS/NZS 4020 – Products for use in contact with drinking water
  • Compliance: WaterMark certified
  • Cure Time: 24 hours before pressurisation
  • Performance Notes:
  • Suitable for above-ground and underground installations
  • Not typically used in domestic housing systems
  • Provides a reliable threaded take-off point for irrigation, risers, and accessories

Variants (Sizes):

  • PPF280 — 12mm × 12mm FI (Equal)
  • PPF281 — 20mm × 12mm FI
  • PPF283 — 25mm × 12mm FI
  • PPF284 — 25mm × 20mm FI
  • PPF285 — 25mm × 25mm FI (Equal)
  • PPF286 — 32mm × 12mm FI
  • PPF288 — 32mm × 25mm FI
  • PPF291 — 40mm × 25mm FI
  • PPF293 — 50mm × 20mm FI
